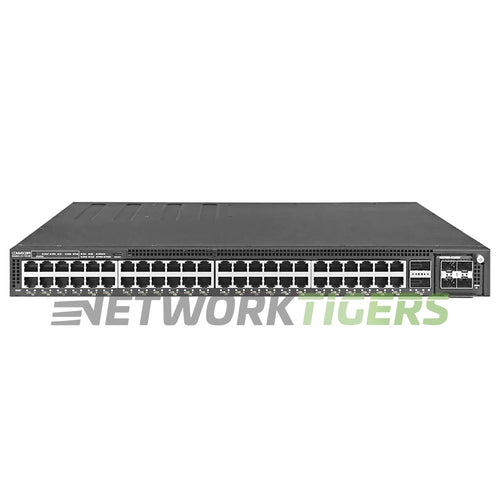

Ruckus ICX7550-48P 48x 1GB PoE+ RJ45 2x 40GB QSFP+ Switch

Ruckus ICX7550-48P 48x 1GB PoE+ RJ45 2x 40GB QSFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-7415

Overview

The Ruckus ICX7550-48P switch delivers 48 PoE+ Gigabit Ethernet ports and two 40Gbps QSFP+ uplinks. It supports a switching capacity of 416 Gbps and a forwarding rate of 309 Mpps. The MAC address table size varies by profile: up to 16,000 (profile1), 114,000 (profile2), or 32,000 (profile).

Designed for scalability, it provides high-performance networking with Power over Ethernet capabilities for connected devices such as access points and security cameras. Its dual QSFP+ ports enable fast data transfers across network segments while reducing bottlenecks in traffic flow.

Ruckus ICX7550-48P 48x 1GB PoE+ RJ45 2x 40GB QSFP+ Switch


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ45 Out of Band Management, 1x USB Type C
  • Stacking Density : 12 Switches
  • Stacking Bandwidth : 960 Gbps
  • AirFlow Direction : Front-to-back, or back-to-front (depending on power supplies and fans installed)
  • Fan Module Options : 3x Hot-Swap Fan Slots (N+1 redundancy) - Fans not included - ordered separately
  • Power Supplies Included : 2x PSU Slots
  • Power Supply Options : 1030W, 1200W - PSU's ordered separately
  • Switching Capacity : 416 Gbps
  • Forwarding Rate : 309 Mpps
  • MAC Address Table Size : 16,000 (profile1), 114,000 (profile2), 32,000 (profile3)
  • Model Number : ICX7550-48P
  • Part Number : ICX7550-48P
  • Condition : Seller refurbished

Datasheet

More information on this Ruckus ICX7550-48P.

Included

  • One (1) Seller refurbished Ruckus ICX7550-48P 48x 1GB PoE+ RJ45 2x 40GB QSFP+ Switch as described above
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
