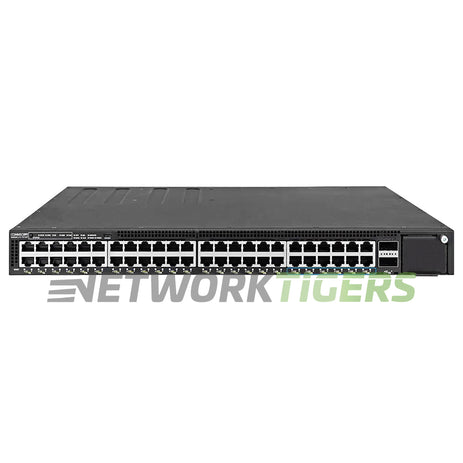

The Ruckus ICX7550-48ZP-E2 switch offers 36x 2.5GB PoE+ RJ-45 ports, 12x 10GB RJ-45 ports, and two QSFP28 F-B slots for high-speed connectivity. With a switching capacity of 1,020 Gbps and a forwarding rate of up to 759 Mpps, this switch can efficiently handle large amounts of data traffic.
It features expandable module slots for additional port options, such as the ICX7650 series modules (sold separately). The MAC address table size ranges from 16,000 to 114,000 entries depending on the configuration profile selected, offering flexibility in networking needs without compromising performance or reliability.
Ruckus ICX7550-48ZP-E2: 48-port with 36-port 10/100/1000 Mbps/2.5 Gbps 802.3bt POE++, 12-port 10/100/1000 Mbps/2,5/5/10 Gbps 802.3bt POE++, 2x 40/100Gbps QSFP+ dual-mode uplink/stacking ports, modular slot. The bundle includes 2x 1200W power supplies and 3x fans, front-to-back airflow, and port modules sold separately.
- Network Ports : 36x 2.5 Gigabit Ethernet PoE+ RJ-45, 12x 10 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 2x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x Out of Band Management RJ-45, 1x USB Type C, 1x RJ-45 Console, 1x USB Type A
- Stacking Ports : Uplink ports act as stacking ports
- Stacking Options : Up to 12 Switches can be stacked together. Aggregate Stacking Bandwidth = 960 Gbps
- Stacking Cable Options : Various DAC cable options.
- Module Slots : 1x Expansion Module Slots - Module not included - ordered separately
- Module Options : ICX7650-1X100GQ (1-port 100GB QSFP28), ICX7650-2X40GQ (2-port 40GB QSFP+), ICX7650-4X10GF (4-port 1/10GB SFP+)
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x ICX-FAN12-E Fan Modules Included - Front-to-Back Airflow
- Power Supplies Included : 2x RPS22-E 1200W AC PSU's Included
- PoE Budget : 1666 W (100-180V) 2000 W (180-240V)
- Switching Capacity : 1,020 Gbps
- Forwarding Rate : 759 Mpps
- MAC Address Table Size : 16,000 (profile1), 114,000 (profile2), 32,000 (profile3)
- Model Number : ICX7550-48ZP-E2
- Part Number : ICX7550-48ZP-E2
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus ICX7550-48ZP-E2 36x 2.5GB PoE+ RJ-45 12x 10GB RJ-45 2x QSFP28 F-B Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
