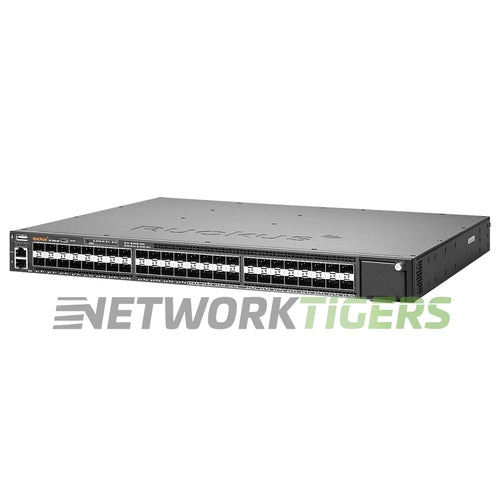

The Ruckus Brocade ICX7650-48F is a high-performance switch that offers impressive capabilities for network connectivity. With 24x 1GB SFP, 24x10GB SFP+, and4x40GB QSFP+ ports, this switch provides ample options to connect various devices.
One of the notable features of this switch is its switching capacity which stands at an impressive rate of 1.128 Terabits per second (Tbps). This ensures efficient data transfer across the network without any bottlenecks or slowdowns.
Wth a forwarding rate of 839 Million Packets Per Second (Mpps), it can handle heavy traffic loads effectively while maintaining fast data transmission speeds.
To support large-scale deployments,the MAC Address Table Size has been expanded to 80,000 addresses. The larger table size enables seamless communication between connected devices and enhances overall performance.
Ruckus ICX7650-48F: 48-port; 24-port 1/10GbE SFP+, 24-port 1 GbE SFP, 4xQSFP (either 2x100G or 4x40G active), modular slot fiber switch, no PSU, no fans, no port module.
- Network Ports : 24x 1 Gigabit Ethernet SFP, 24x 10 Gigabit Ethernet SFP+
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+ (either 2x100G or 4x40G active)
- Management Ports : 1x Out of Band Management RJ45, 1x Serial Console RJ45, 1x USB Type C, 1x USB Type A
- Stacking Ports : Can stack on 4x 40G or 2x 100G rear facing QSFP ports - Aggregated stacking bandwidth (data rate, full duplex) = 2.4 Tbps
- Stacking Cable Options : Various Ruckus 40G/100G QSFP cables
- Module Slots : 1x Expansion Module Slot - Modules not included
- Module Options : ICX7650-1X100GQ (1-port 100GbE QSFP28), ICX7650-2X40GQ (2-port 40GbE QSFP+), ICX7650-4X10GF (4-port 1/10GbE SFP+)
- AirFlow Direction : Depends on Fan and PSU configuration
- Fan Module Options : 2x Fan Module Slots - 0x Fan Module Included - Options are ICX-FAN12-E, ICX-FAN12-I
- Power Supplies Included : 2x PSU Slots - None Included
- Power Supply Options : RPS16-E, RPS16-I
- Switching Capacity : 1.128 Tbps
- Forwarding Rate : 839 Mpps
- MAC Address Table Size : 80,000
- Model Number : ICX7650-48F
- Part Number : ICX7650-48F
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus Brocade ICX7650-48F 24x 1GB SFP 24x 10GB SFP+ 4x 40GB QSFP+ Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Supplies Not Included
- Fan Modules Not Included
- Transceiver Modules Not Included
