The NEW Ruckus Brocade ICX7650-48F Switch is equipped with 24x 1GB SFP, 24x 10GB SFP+, and 4x40G QSFP+ ports for high-speed data transfer. With a switching capacity of up to 1.128 Tbps and a forwarding rate of over 839 Mpps, this switch delivers reliable performance in demanding network environments.
The MAC Address Table Size supports up to 80,000 addresses for efficient communication across your network. Expansion Module Slots allow you to customize the switch with options like the ICX7650-1X100GQ (1-port100GbE QSFP28) or ICX7650-2X40GQ (2-port40GbE QSFP+) modules as needed.

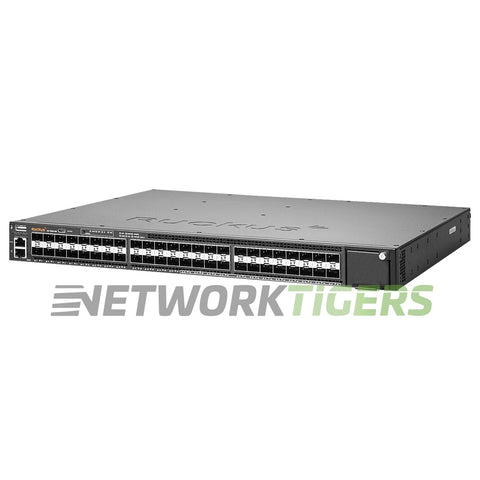

NEW Ruckus Brocade ICX7650-48F 24x 1GB SFP 24x 10GB SFP+ 4x 40GB QSFP+ Switch
- Network Ports : 24x 1 Gigabit Ethernet SFP, 24x 10 Gigabit Ethernet SFP+
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+ (either 2x100G or 4x40G active)
- Management Ports : 1x Out of Band Management RJ45, 1x Serial Console RJ45, 1x USB Type C, 1x USB Type A
- Stacking Ports : Can stack on 4x 40G or 2x 100G rear facing QSFP ports - Aggregated stacking bandwidth (data rate, full duplex) = 2.4 Tbps
- Stacking Cable Options : Various Ruckus 40G/100G QSFP cables
- Module Slots : 1x Expansion Module Slot - Modules not included
- Module Options : ICX7650-1X100GQ (1-port 100GbE QSFP28), ICX7650-2X40GQ (2-port 40GbE QSFP+), ICX7650-4X10GF (4-port 1/10GbE SFP+)
- AirFlow Direction : Depends on Fan and PSU configuration
- Fan Module Options : 2x Fan Module Slots - 0x Fan Module Included - Options are ICX-FAN12-E, ICX-FAN12-I
- Power Supplies Included : 2x PSU Slots - None Included
- Power Supply Options : RPS16-E, RPS16-I
- Switching Capacity : 1.128 Tbps
- Forwarding Rate : 839 Mpps
- MAC Address Table Size : 80,000
- Model Number : ICX7650-48F
- Part Number : ICX7650-48F
- Condition : New
- One (1) NEW Ruckus Brocade ICX7650-48F 24x 1GB SFP 24x 10GB SFP+ 4x 40GB QSFP+ Switch as described above
