NEW Ruckus Brocade ICX7650-48ZP-E2 48x MultiG PoE+ RJ45 4x QSFP+ 1x Slot Switch
New

NEW Ruckus Brocade ICX7650-48ZP-E2 48x MultiG PoE+ RJ45 4x QSFP+ 1x Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-4941
UPC: 783555337691

Overview

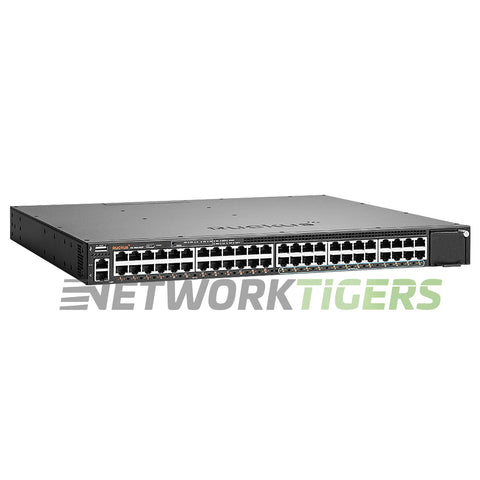

The Ruckus Brocade ICX7650-48ZP-E2 is a high-performance switch designed for demanding networking environments. With 48 MultiGB PoE+ RJ-45 ports and 4 QSFP+ ports, this switch offers a versatile solution for data center or enterprise applications.

The PoE budget of 1500W allows for power-hungry devices to be connected without the need for additional power sources. Featuring a switching capacity of 1.128 Tbps and a forwarding rate of 839 Mpps, this switch can handle large amounts of traffic efficiently. The MAC address table size of up to 80,000 entries ensures smooth communication between devices on the network.

Ruckus ICX7650-48ZP-E2: 48-port; 24-port 100MbE/1GbE/2.5GbE/5Gb E/10GbE POH, 24-port 1 GbE switch PoE+, 4xQSFP (either 2x100G or 4x40G active), modular slot bundle includes two 1000W AC power supplies and two fans, front to back airflow, port modules sold separately.


Specifications

  • Network Ports : 48x (24x100Mb/1GB/2.5GB/5GB/10 Gigabit POH, 24x 1 Gigabit Ethernet) RJ-45
  • Uplink Ports : 4x 40 Gigabit Ethernet QSFP+ (either 2x100G or 4x40G active)
  • Management Ports : 1x Out of Band Management RJ-45, 1x Serial Console RJ-45, 1x USB Type C, 1x USB Type A
  • Stacking Ports : Can stack on 4x 40G or 2x 100G rear facing QSFP ports - Aggregated stacking bandwidth (data rate, full duplex) = 2.4 Tbps
  • Stacking Cable Options : Various Ruckus 40G/100G QSFP cables
  • Module Slots : 1x Expansion Module Slot - Modules not included
  • Module Options : ICX7650-1X100GQ (1-port 100GbE QSFP28), ICX7650-2X40GQ (2-port 40GbE QSFP+), ICX7650-4X10GF (4-port 1/10GbE SFP+)
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 2x ICX-FAN12-E Fan Modules Included - Front to Back Airflow
  • Power Supplies Included : 2x RPS16-E 1000W AC PSU's Included
  • Power Supply Options : RPS16-E, RPS16-I
  • PoE Budget : 1500 W
  • Switching Capacity : 1.128 Tbps
  • Forwarding Rate : 839 Mpps
  • MAC Address Table Size : 80,000
  • DRAM and Flash : 4GB DRAM
  • Model Number : ICX7650-48ZP-E2
  • Part Number : ICX7650-48ZP-E2
  • Condition : New


Included

  • One (1) NEW Ruckus Brocade ICX7650-48ZP-E2 48x MultiG PoE+ RJ45 4x QSFP+ 1x Slot Switch as described above
