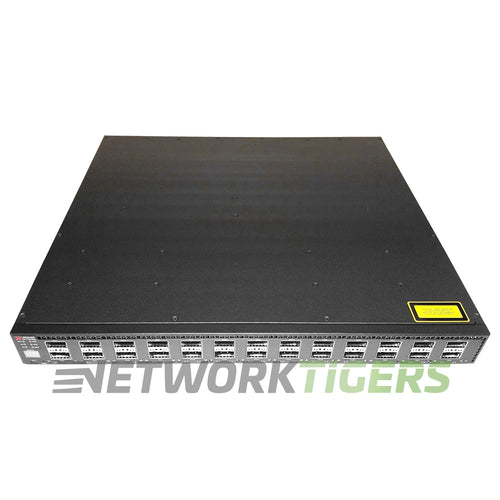

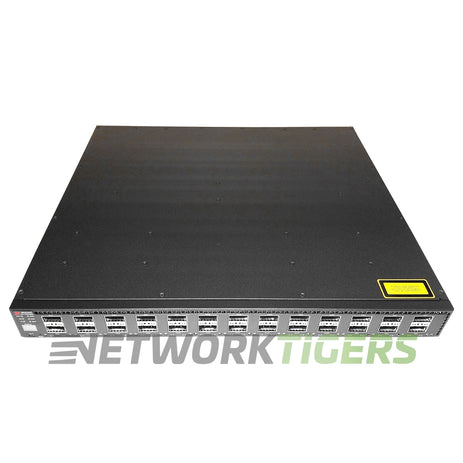

The Ruckus Brocade ICX7750-26Q ICX 7750 is a high-performance switch with an impressive switching capacity of 2.56 Tbps. Featuring 26 QSFP+ ports that support up to 40GB each, this switch provides excellent connectivity options for data centers and enterprise networks.
With its advanced features and reliable performance, the ICX7750-26Q offers seamless network scalability and flexibility while ensuring low-latency communication. Its non-blocking architecture enables efficient forwarding at maximum speed across all ports simultaneously.
This Ruckus Brocade switch incorporates redundant power supplies and fans, minimizing the risk of downtime due to hardware failures. It supports various networking protocols like Layer3 routing (OSPFv2/v3), BGP4+, VRF-Lite, and Virtual Router Redundancy Protocol (VRRP), which enhance network efficiency by enabling intelligent traffic prioritization.
Ruckus ICX7750-26Q: Ruckus ICX 7750 with 26x 40 GbE QSFP ports and modular interface slot. No power supplies or fan units (must be ordered separately). No optics. Requires ICX7750-L3-COE Certificate of Entitlement to use advanced Layer 3 features.
- Network Ports : 26x 40 Gigabit Ethernet QSFP+ (12 of these ports can be used as full-duplex 40GB stacking ports)
- Management Ports : 1x Gigabit Management, 1x mini USB (Type B) Console, 1x USB (Type A)
- Stacking Ports : See "Network Ports"
- Stacking Options : Provides unprecedented stacking density and performance with up to 12 switches per stack and up to 5.76 Tbps of aggregated stacking bandwidth, limiting inter-switch bottlenecks and supporting large-scale distributed chassis deployments
- Module Slots : 1x Expansion Module Slot - Module is not included
- Module Options : ICX7750-6Q (Brocade ICX 7750 6 40 GbE QSFP module for use in Brocade ICX7750-48F, 7750-48C, or 7750-26Q)
- AirFlow Direction : Depends on PSU and Fan configuraiton
- Fan Module Options : None Included. 4 slots. Ordered Separately - ICX7750-FAN-I, ICX7750-FAN-E, ICX7750-FAN-I-SINGLE, ICX7750-FAN-E-SINGLE
- Power Supplies Included : None Included. Ordered Separately (2 x PS slots)
- Power Supply Options : RPS9+I, RPS9+E, RPS9DC+I, RPS9DC+E
- Maximum VLAN's : 4,096
- Switching Capacity : 2.56 Tbps
- Forwarding Rate : 1.90 Bpps
- MAC Address Table Size : 96,000 (switch image), 32,000 (router image)
- Latency : 550 ns
- Packet Buffer : 12.2 MB
- Model Number : ICX7750-26Q
- Part Number : ICX7750-26Q
- Condition : Seller refurbished
- One (1) Seller Refurbished Ruckus ICX7750-26Q Brocade ICX 7750 Series 26x 40 Gigabit QSFP+ Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Supplies Not Included
- Fan Modules Not Included
- Transceiver Modules Not Included
