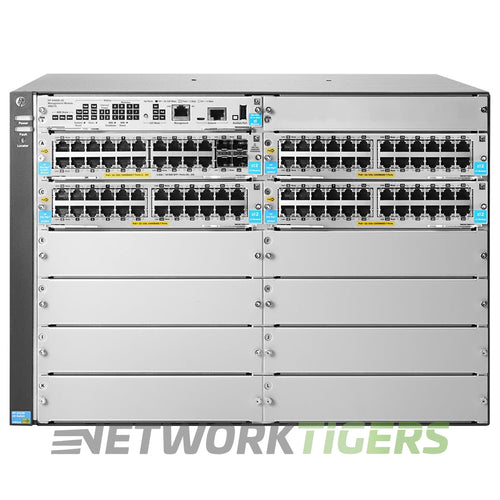

HPE Aruba J9825A 92x 1GB PoE+ RJ45 2x 10GB SFP+ 8x Expansion Module Slot Switch

HPE Aruba J9825A 92x 1GB PoE+ RJ45 2x 10GB SFP+ 8x Expansion Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-5524
UPC: 888182309063

Overview

The HPE Aruba J9825A switch offers 92x 1GB PoE+ RJ45 ports, along with two 10GB SFP+ uplink interfaces and eight expansion module slots. With a switching capacity of 1920 Gbps and a forwarding rate of 1142.8 Mpps, this switch is designed to handle high traffic volumes efficiently.

The MAC address table size is robust at 64000 entries, ensuring smooth operation in large networks. Low latency (<2.8 µs) further enhances performance for time-sensitive applications such as voice or video transmissions.

HPE Aruba J9825A 92x 1GB PoE+ RJ45 2x 10GB SFP+ 8x Expansion Module Slot Switch


Specifications

  • Network Ports : 92x 1 Gigabit Ethernet PoE+ RJ45 (3x J9534A and 1x J9536A)
  • Uplink Ports : 2x 10 Gigabit Ethernet SFP+ (From the 1x J9536A)
  • Management Ports : 1x RJ45 Serial Console, 1x AUX, 1x OOBM , 1x Console mini-USB Type B
  • Additional Port Information : Supports a maximum of 288x Gigabit Ethernet RJ45 or 288x 1G SFP or 96x 10G SFP+ or 96x HPE Smart Rate MultiGigabit Ethernet or 24x 40 Gigabit ports, or a combination - module options are - J9534A, J9536A.
  • Module Slots : 12x Total Module Slots - 8x Open Module Slots
  • Fan Module Options : 1x J9832A Fan Tray Included
  • Power Supplies Included : None Included - 4x Slots. 2x Minimum Power Supplies required. (ordered separately)
  • Power Supply Options : J9828A, J9829A, J9830A,
  • Switching Capacity : 1920 Gbps
  • Forwarding Rate : 1142.8 Mpps
  • MAC Address Table Size : 64000
  • Latency : < 2.8 µs (FIFO 64-byte packets) (1000Mb)
  • Model Number : J9825A
  • Part Number : J9825A, 5412R-92G-PoE+/2SFP+
  • Condition : Seller refurbished

Datasheet

More information on this HPE J9825A.

Included

  • One (1) Seller Refurbished Aruba HPE J9825A 92x 1GB PoE+ RJ45 2x 10GB SFP+ 8x Expansion Module Slot Switch as described above
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Power Cord Not Included
  • Transceiver Modules Not Included
  • Network Modules Not Included
  • Power Supplies Not Included
