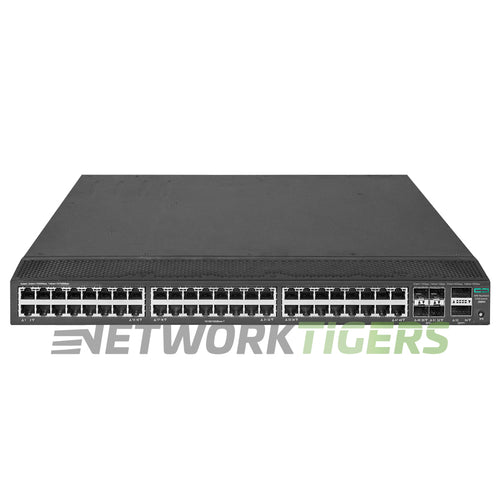

The HPE JG894A 5700-48XG-4XG-2QSFP+ switch offers high performance and versatility for network connectivity. With 48x1GB RJ45 ports, it can accommodate a large number of devices. The additional 4x10GB SFP+ and 2x40GB QSFP+ ports enable seamless integration with higher bandwidth networks.
With a switching capacity of 336 Gbps, the switch ensures fast data transfer between connected devices. Its forwarding rate is impressive at up to 250 Mpps, allowing for efficient traffic management in busy environments.
This HPE switch also boasts a MAC address table size of 128,000 entries, allowing support for numerous connected devices without reducing speed or efficiency. The ultra-low latency level below 5µs (64-byte packets) ensures that even time-sensitive tasks are handled quickly.
HPE JG894A: 5700-48G-4XG-2QSFP+ 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: complete only; 4 fixed 1000/10000 SFP+ ports; 2 QSFP+.
- Network Ports : 48x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+, 2x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Out of Band Management, 1x USB2.0
- Module Slots : Not included - 2x Fan Tray Slots - Two same-direction airflow fan trays required. Ordered separately -
- Module Options : JC683A (Front to Back), JC682A (Back to Front)
- Power Supplies Included : 0x PSU's - Not Included - Ordered Separately - 2x Power Supply Slots - 1x Minimum required
- Power Supply Options : JG900A, JG901A
- Switching Capacity : 336 Gbps
- Forwarding Rate : 250 Mpps
- MAC Address Table Size : 128,000
- 10 Gb/s Latency : < 5 μs (64-byte packets)
- Model Number : JG894A
- Part Number : JG894A, 5700-48XG-4XG-2QSFP+
- Condition : Seller refurbished
- One (1) Seller Refurbished HPE JG894A 5700-48XG-4XG-2QSFP+ 48x 1GB RJ-45 4x 10GB SFP+ 2x 40GB QSFP+ Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Power Supplies Not Included
- Fan Modules Not Included
