The HPE JH395A FlexFabric 5940 Series Switch is a high-performance networking solution offering impressive features. With its routing table size of 120,000 entries for IPv4 and 60,000 entries for IPv6, it can handle extensive network configurations efficiently.
This switch provides enhanced switching capacity with a throughput rate of up to 1071 Mpps (million packets per second) and a maximum speed of 1440 Gbps. This ensures seamless data transfer even in demanding environments where large amounts of data need to be processed quickly.
Equipped with an expansive MAC address table that supports up to 288,000 addresses, the switch accommodates diverse network device connections effortlessly.

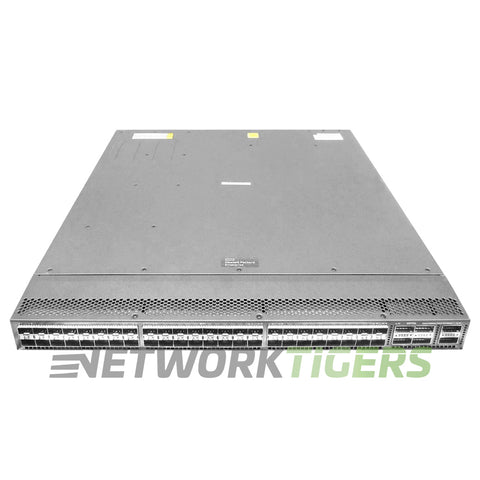

HPE JH395A: HPE FlexFabric 5940 48SFP+ 6x QSFP+ Ports Switch
- Network Ports : 48x 10 Gigabit Ethernet SFP+
- Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x SFP Out of Band Management, 1x 1GB SFP, 1x USB 2.0, 1x Mini USB 2.0
- Product Family : FlexFabric 5940 Series
- Fan Module Options : 2x Fan Tray Slots - Ordered Separately - Options are JC682A (B-to-F), JC683A (F-to-B), JG552A (Hi vol F-to-B), JG553A (Hi Vol B-to-F)
- Power Supplies Included : 2x PSU Slots - 1x Min Required - Ordered Separately
- Power Supply Options : JG900A (300W AC B-to-F), JC680A (650WAC bi-directional), JC681A (650W AC bi-directional)
- Routing Table Size : 120000 entries (IPv4), 60000 entries (IPv6)
- Switching Capacity : 1440 Gbps
- MAC Address Table Size : 288000
- Latency : < 1 µs (64-byte packets)
- Throughput : up to 1071 Mpps
- Model Number : JH395A
- Part Number : JH395A
- Condition : New
- One (1) NEW HPE JH395A FlexFabric 5940 Series 48x 10GB SFP+ 6x 100GB QSFP28 Switch as described above
