The HPE JH396A FlexFabric 5940 Series is a high-performance switch with impressive capabilities. With a switching capacity of 2560 Gbps, this manages high-speed data transfers within your network. It offers a forwarding rate of up to 1904 Mpps, allowing for efficient packet processing.
With its MAC Address Table Size supporting up to 288K entries, the JH396A provides ample space for storing device addresses in your network infrastructure. It has low latency levels of less than one microsecond (64-byte packets), ensuring minimal delays during data transmission.
Designed for optimal performance and reliability, the HPE JH396A is an excellent choice for businesses that require fast and efficient networking solutions. Its specifications make it suitable for handling demanding tasks while maintaining stability in large-scale networks without reducing speed.

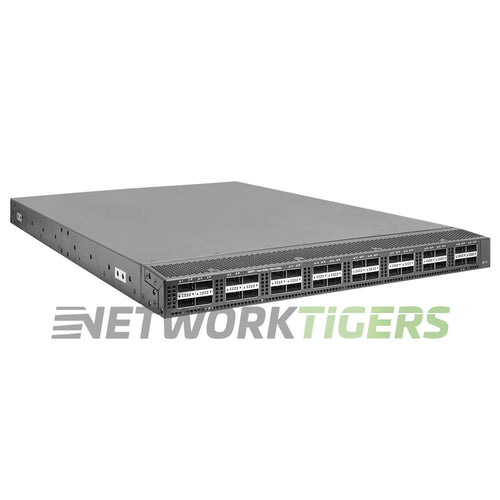

HPE FlexFabric 5940 32QSFP+ Switch (JH396A): 32x QSFP+ 40GbE ports, 2x power supply slots, 1x minimum power supply required (ordered separately), 2x fan tray slots (fan trays ordered separately to match air flow of power supplies)
- Network Ports : 32x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x USB 2.0, 1x Mini USB 2.0
- AirFlow Direction : Depends on Fan and PSU configuration
- Fan Module Options : 2x Fan Tray Slots - ordered separately (Options are JC682A, JC683A)
- Power Supplies Included : 2x PSU Slots - 1x Min Required - ordered separately
- Power Supply Options : JG900A, JG901A, JC680A, JH336A
- Packet Buffer : 16MB
- Switching Capacity : 2560 Gbps
- Forwarding Rate : Up to 1904 Mpps
- MAC Address Table Size : 288,000
- Latency : < 1 µs (64-byte packets)
- DRAM and Flash : Flash = 1GB, SDRAM = 4GB
- Model Number : JH396A
- Part Number : JH396A
- Condition : Seller refurbished
- One (1) Seller refurbished HPE JH396A FlexFabric 5940 Series 32x 40GB QSFP+ Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Cord Not Included
- Power Supplies Not Included
- Transceiver Modules Not Included
- Fan Modules Not Included
