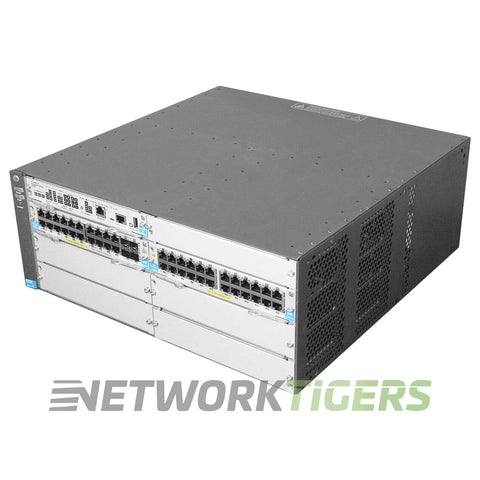

The HPE Aruba JL003A is a high-performance switch that offers 44x 1GB PoE+ RJ-45 ports, as well as 4x 10GB SFP+ uplink ports and an additional modular slot for expansion. With a switching capacity of up to 960 Gbps and a forwarding rate of up to 571.4 Mpps, this switch provides fast and efficient data transfer.
One notable feature of the JL003A is its large MAC address table size, which can support up to 64,000 entries. This allows for seamless communication between connected devices within your network infrastructure.
The JL003A boasts impressive speeds with less than 2.8 μs (FIFO) at full load using packets sized at maximum length—ensuring minimal delay in transmitting data across your network.
Aruba JL003A: 4x4 RJ-45 autosensing 10/100/1000 PoE+ ports, 4x open 10GbE SFP+ transceiver slots; 4 open module slots; Supports a maximum of 144 autosensing 10/100/1000 ports or 144x SFP ports or 48x SFP+ ports or 48x HPE Smart Rate Multi-Gigabit or 12x 40GbE ports, or a combination.
- Network Ports : 24x 1 Gigabit Ethernet RJ-45 PoE+ (J9986A Module), 20x 1 Gigabit Ethernet RJ-45 PoE+/4 x 10GbE SFP+ (J9990A Module)
- Management Ports : 1x RJ-45 Serial Console, 1x AUX, 1x OOBM, 1x Console mini-USB Type B (1x J9827A Management Module)
- Module Slots and Options : 1x J9986A (Aruba 24-port 10/100/1000BASE-T PoE+ MACsec v3 zl2 Module), 1x J9990A (20-port 10/100/1000BASE-T PoE+ / 4-port 1G/10GbE SFP+ MACsec v3 zl2 Module), 1x J9827A (Aruba 5400R zl2 Management Module) Included - 4x Open Module Slots available
- Module Options : J9827A, J9986A, J9987A, J9988A, J9989A, J9990A, J9991A, J9992A, J9993A, J9995A, J9996A
- Fan Modules AirFlow Direction : 1x J9831A HPE 5406R zl2 Switch Fan Tray Included
- Power Supplies Included : 0x Included - 2x PSU Slots - 1x Min PSU required (ordered separately) - J9828A (700W PoE+ zl2), J9829A (1100W PoE+ zl2), J9830A
- Switching Capacity : 960 Gbps
- Forwarding Rate : up to 571.4 Mpps
- MAC Address Table Size : 64000
- 1000Mb Latency : < 2.8 µs (FIFO 64-byte packets)
- Rack Mounts : Included (4-RU)
- Model Number : JL003A
- Part Number : JL003A
- Condition : New

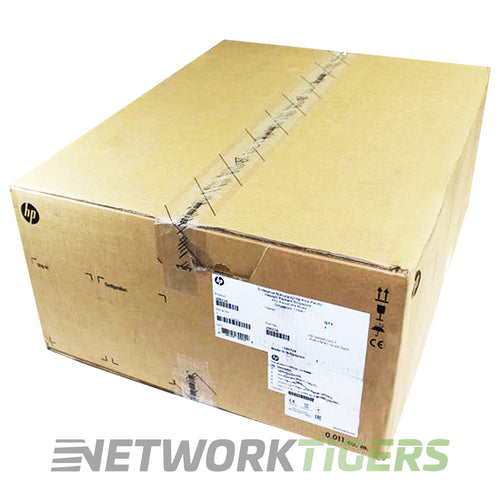

- One (1) NEW Aruba HPE JL003A 44x 1GB PoE+ RJ-45 4x 10GB SFP+ 4x Free Mod Slot Switch as described above
