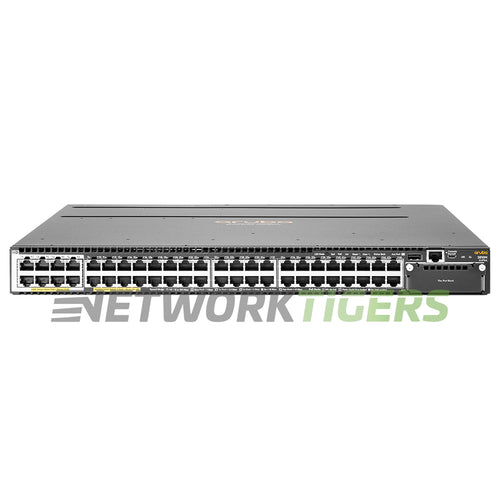

The HPE Aruba JL076A switch has 40x 1GB PoE+ RJ45 ports, making it suitable for organizations requiring a high-density network. With an impressive switching capacity of 480 Gbps, this switch can handle large amounts of data traffic effortlessly.
With a forwarding rate of 273.8 Mpps (million packets per second), the switch ensures efficient and fast delivery of network packets to their destinations. It boasts a MAC address table size that can hold up to 64,000 entries, facilitating seamless communication between devices on the network.
Thanks to its low latency (less than 2.8 μs) for FIFO (First-In-First-Out) handling of small-sized packets (~64 bytes), real-time applications such as video streaming or VoIP experience minimal delay.
Aruba JL076A: 40x RJ45 autosensing 10/100/1000 PoE+ ports - Ports 1-40 support MACSec. 8x RJ-45 HPE Smart Rate Multi-Gigabit ports; Ports 1-8 support MACSec. One open module slot Supports a maximum of 4 SFP+ ports or 2x 40 GbE ports with an optional module.
- Network Ports : 40x 1 Gigabit Ethernet PoE+ RJ-45, 8x HPE Smart Rate Multi-Gigabit Ethernet RJ-45
- Product Family : Aruba 3810 Series
- Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Gigabit Management, 1x mini-USB Type B Console, 1x USB/AUX
- Stacking Ports : 1x Stacking Module Slot - The JL084A Stacking Module is not included - High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
- Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m) - Not Included
- Module Slots : 2x Expansion Module Slots - Modules are not included - Sold Separately
- Module Options : JL079A (2x 40GB QSFP+), JL078A (1x 40GB QSFP+), JL081A (4x 10GB SFP+), JL083A (4x 10GB SFP+)
- Fan Module Options : 1x JL088A Aruba 3810 Switch Fan Tray Included
- Power Supplies Included : 2x Power Supply slots - 1 Minimum Power Supply Required - Ordered Separately
- Power Supply Options : JL085A (250W AC), JL086A (680W AC), JL087A (1050W AC)
- Switching Capacity : 480 Gbps
- Forwarding Rate : 273.8 Mpps
- MAC Address Table Size : 64000
- Latency : < 2.8 μs (FIFO 64-byte packets) (1000MB)
- Model Number : JL076A
- Part Number : JL076A
- Condition : Seller refurbished
- One (1) Seller Refurbished Aruba HPE JL076A 40x 1GB PoE+ RJ-45 8x MultiGB 1x Expansion Mod Slot Switch as described above
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
- Power Cord Not Included
- Power Supplies Not Included
