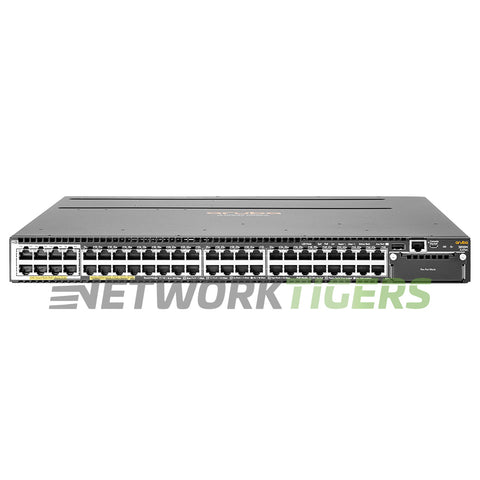

The HPE Aruba JL076A is a powerful and versatile switch suitable for various network environments. With 40x 1GB PoE+ RJ-45 ports, it provides ample connectivity options for devices requiring Power over Ethernet.
With a switching capacity of 480 Gbps and a forwarding rate of 273.8 Mpps, this switch offers fast data transfer speeds and efficient packet processing. Its MAC address table size reaches up to 64000 entries, enabling smooth communication between connected devices.
Featuring low latency at less than 2.8 μs (FIFO with64-byte packets), the JL076A ensures minimal delays in transmitting data across the network.
HPE Aruba JL076A: 40 RJ-45 autosensing 10/100/1000 PoE+ ports - Ports 1—40 support MACSec. 8 RJ-45 HPE Smart Rate Multi-Gigabit ports; Ports 1—8 support MACSec. One open module slot Supports a maximum of 4 SFP+ ports or 2 40 GbE ports with an optional module.
- Network Ports : 40x 1 Gigabit Ethernet PoE+ RJ-45, 8x HPE Smart Rate Multi-Gigabit Ethernet RJ-45
- Product Family : Aruba 3810 Series
- Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Gigabit Management, 1x mini-USB Type B Console, 1x USB/AUX
- Stacking Ports : 1x Stacking Module Slot - The JL084A Stacking Module is not included - High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
- Module Slots and Options : 2x Expansion Module Slots - Modules are not included - Sold Separately - Options are - JL079A (2x 40GB QSFP+), JL078A (1x 40GB QSFP+), JL081A (4x 10GB SFP+), JL083A (4x 10GB SFP+)
- Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
- Fan Modules AirFlow Direction : 1x JL088A Aruba 3810 Switch Fan Tray Included
- Power Supplies Included : 2x Power Supply slots - 1 Minimum Power Supply Required - Ordered Separately - Options are JL085A (250W AC), JL086A (680W AC), JL087A (1050W AC)
- Switching Capacity : 480 Gbps
- Forwarding Rate : 273.8 Mpps
- MAC Address Table Size : 64000
- Latency : < 2.8 μS (FIFO 64-byte packets) (1000MB)
- Rack Mounts : Included (1-RU)
- Model Number : JL076A
- Part Number : JL076A
- Condition : New

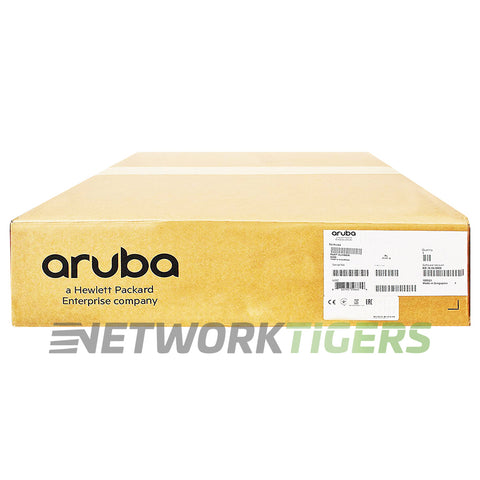

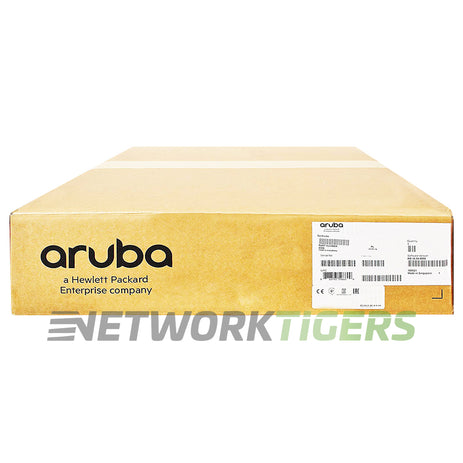

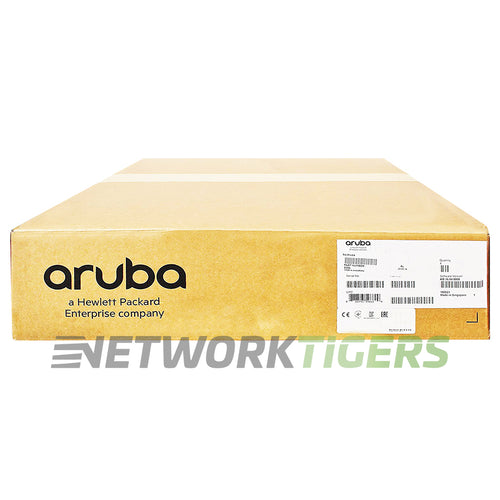

- One (1) NEW Aruba HPE JL076A 40x 1GB PoE+ RJ-45 8x MultiGB 1x Expansion Mod Slot Switch as described above
