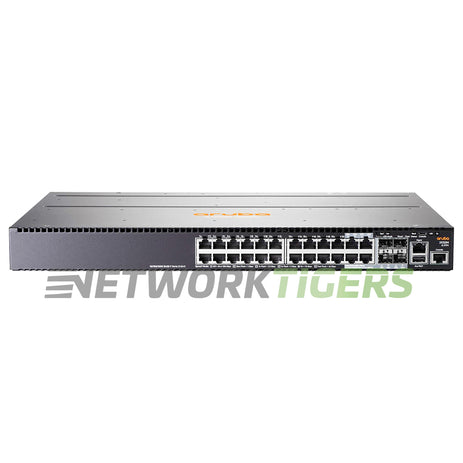

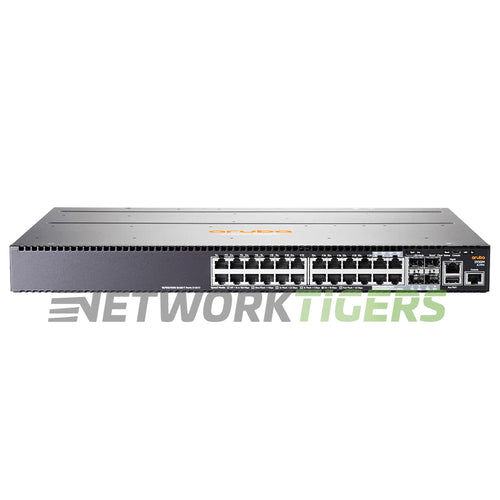

The HPE Aruba JL319A 2930M Series Switch is a versatile networking solution that combines high performance and advanced features. Its 20x RJ45 ports provide excellent connectivity for devices requiring 1Gbps connections. The switch has 4x SFP ports, which enable fiber optic network connections.
Featuring a switching capacity of up to 128 Gbps (228 Gbps including stacking), this switch can efficiently handle heavy network traffic without affecting speed or reliability. It also offers a forwarding rate of 95.2 Mpps, ensuring smooth data transmission across networks.
With its large MAC address table size of 32768 entries and low latency (less than 3.1µs FIFO for 64-byte packets), the switch optimizes packet delivery while minimizing delays even during peak usage periods.
HPE Aruba JL319A: 20x Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T); Duplex: 10BASE-T/100BASE-TX: half or full;1000BASE-T: full only.
- Network Ports : 20x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 1x Dual Personality Serial Console, 1x USB Type B, 1x Out of Band Management,
- Stacking Ports : 1x Stacking Module Slot - Stacking Performance 100Gbps
- Stacking Options : JL325A Stacking Module (Not Included)
- Stacking Cable Options : J9734A (0.5m), J9735A (1m), J9736A (3m)
- Module Slots : 1x Expansion Module Slot - Modules are not included
- Module Options : JL078A (1x 40GB QSFP+), JL083A (4x 10GB SFP+ MACsec), JL081A (4x 1/2.5/5/10GB RJ-45 SmartRate)
- Fan Module Options : Internal Fans
- Power Supplies Included : 2x Power Supply Slots - PSU's not included - 1x PSU required
- Power Supply Options : Options are JL085A
- Switching Capacity : 128 Gbps - 228 Gbps (Including Stacking)
- Forwarding Rate : 95.2 Mpps
- MAC Address Table Size : 32768
- Latency : < 3.1µs (FIFO 64-byte packets) (1000MB)
- Model Number : JL319A
- Part Number : JL319A
- Condition : Seller refurbished
- One (1) Seller Refurbished HPE Aruba JL319A 2930M Series 20x 1GB RJ-45 4x 1GB SFP 1x Module Slot Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Power Supplies Not Included - ordered separately
