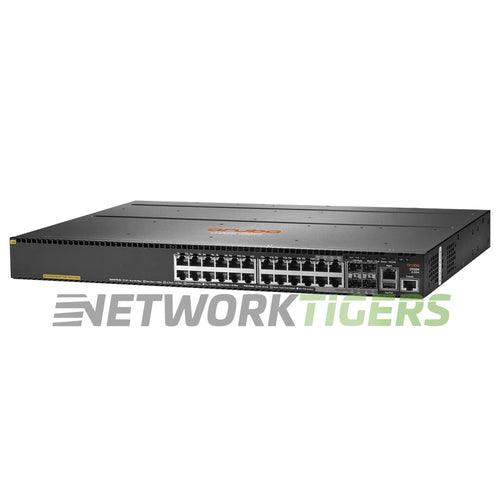

The HPE Aruba JL320A is a high-performance switch for efficient network management. With 20x 1GB PoE+ RJ-45 ports and 4x 1GB Combo ports, it offers great flexibility in connectivity options. The inclusion of an expansion module allows for future scalability.
This switch has an impressive PoE budget of 840W, ensuring sufficient power delivery to connected devices such as wireless access points or IP cameras. The switching capacity ranges from a minimum of f128 Gbps to a maximum stacking configuration at 228 Gbps (including stacking), guaranteeing fast and reliable data transmission across networks.
With a forwarding rate clocked at 95.2 Mpps and MAC Address Table Size maximum of 32768 entries, this switch easily handles large traffic volumes while maintaining low latency.
Aruba JL320A: 20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only. 4 Combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports.
- Network Ports : 20x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 4x 1 Gigabit Combo (1 Gigabit Ethernet PoE+ RJ-45 or 1G SFP)
- Management Ports : 1x Dual Personality Serial Console, 1x USB Type B, 1x Out of Band Management,
- Stacking Ports : 1x Stacking Module Slot - Stacking Performance 100Gbps
- Stacking Options : JL325A Stacking Module (not included)
- Stacking Cable Options : J9734A (0.5m), J9735A (1m), J9736A (3m)
- Module Slots : 1x Expansion Module Slot - Modules are not included
- Module Options : JL078A (1x 40GB QSFP+), JL083A (4x 10GB SFP+ MACsec), JL081A (4x 1/2.5/5/10GB RJ-45 SmartRate) - None Included
- Fan Module Options : Internal Fans
- Power Supplies Included : 2x Power Supply Slots - PSU's not included - 1x PSU required - Options are JL085A
- Power Supply Options : Options are JL085A
- PoE Budget : 840W
- Switching Capacity : 128 Gbps - 228 Gbps (Including Stacking)
- Forwarding Rate : 95.2 Mpps
- MAC Address Table Size : 32768
- Latency : < 3.1µs (FIFO 64-byte packets) (1000MB)
- Model Number : JL320A
- Part Number : JL320A
- Condition : Seller refurbished
- One (1) Seller Refurbished HPE Aruba JL320A 20x 1GB PoE+ RJ-45 4x 1GB Combo 1x Expansion Module Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
- Power Supplies Not Included
- Power Cord Not Included
