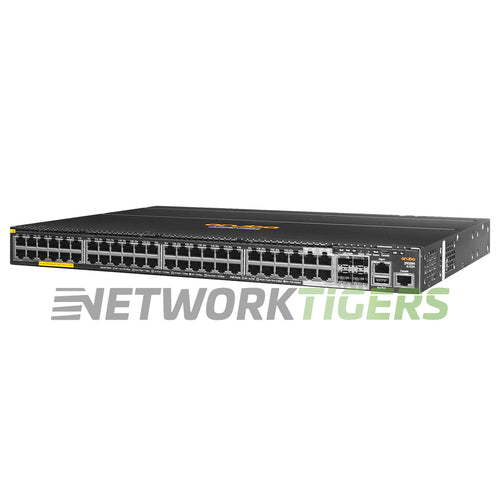

The HPE Aruba JL323A switch is a high-performance network device designed for large-scale deployments. With 36 Gigabit PoE+ ports, 4x combo ports supporting both Gigabit and SFP connections, and 8x powerful 10GB copper ports with PoE+, this switch offers versatile connectivity options.
It has a generous power budget of up to 1440 Watts, enabling it to provide Power over Ethernet capabilities to connected devices. The switching capacity of the JL323A is impressive at 320 Gbps, ensuring smooth and efficient data transfer within your network. It also boasts a forwarding rate of up to 112 Mpps (million packets per second), facilitating fast packet delivery.
With a MAC address table size that can accommodate up to 32,768 unique addresses and latency below3.1µs (FIFO64-byte packets), this switch ensures seamless communication between numerous devices on your network without delay or congestion issues.
HPE Aruba JL323A: 36x Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T PoE+); Duplex: 10BASE-T/100BASE-TX: half or full;1000BASE-T: full only. 4x Combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports.8 802.3bz 1/2.5/5 and 10GbaseT copper PoE+ ports.
- Network Ports : 36x 1 Gigabit Ethernet RJ-45, 8x 10 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 1 Gigabit Combo (1 Gigabit Ethernet PoE+ RJ-45 or 1G SFP)
- Management Ports : 1x Dual Personality Serial Console, 1x USB Type B, 1x Out of Band Management,
- Stacking Ports : 1x Stacking Module Slot - Not included - Stacking Performance 100Gbps
- Stacking Options : JL325A (2 Port Stacking Module)
- Stacking Cable Options : J9734A (0.5m), J9735A (1m), J9736A (3m)
- Module Slots : 1x Expansion Module Slot - Modules are not included
- Module Options : JL078A (1x 40GB QSFP+), JL083A (4x 10GB SFP+ MACsec), JL081A (4x 1/2.5/5/10GB RJ-45 SmartRate) - None Included
- Fan Module Options : Internal
- Power Supplies Included : 2x Power Supply Slots - PSU's not included - 1x PSU required
- Power Supply Options : Options are JL085A
- PoE Budget : 1440 Watts
- Switching Capacity : 320 Gbps
- Forwarding Rate : 112 Mpps
- MAC Address Table Size : 32768
- Latency : < 3.1µs (FIFO 64-byte packets) (1000MB)
- Model Number : JL323A
- Part Number : JL323A
- Condition : Seller refurbished
- One (1) Seller Refurbished Aruba HPE JL323A 36x 1GB PoE+ RJ-45 4x 1GB Combo 8x 10GB PoE+ Copper Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
- Power Supplies Not Included
