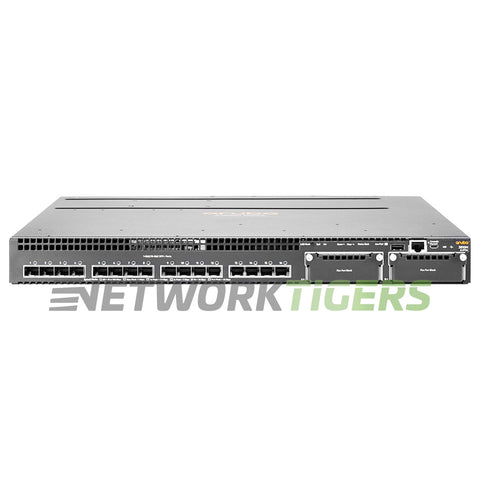

NEW HPE Aruba JL430A 3810 Series 24x 10GB SFP+ 2x Expansion Module Slot Switch
New

NEW HPE Aruba JL430A 3810 Series 24x 10GB SFP+ 2x Expansion Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3305
UPC: 190017142548

Overview

The HPE Aruba JL430A 3810 Series Switch offers high performance with a switching capacity of 480 Gbps and a forwarding rate of up to 285.7 Mpps. With its 24x 10GB SFP+ ports and two expansion module slots, this switch provides flexibility for expanding your network as needed.

The MAC Address Table Size of 64,000 ensures efficient routing within the network while maintaining low latency at less than .2.8 µs for data transfer speeds.

HPE JL430A: Aruba 3810M 24SFP+ 250W Switch.


Specifications

  • Network Ports : 24x 10 Gigabit Ethernet SFP+ (16x Fixed, 8x through use of module - see "Module Slots and Options")
  • Product Family : Aruba 3810 Series
  • Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x USB
  • Stacking Ports : 1x Stacking Module Slot (At Rear of Switch)
  • Stacking Options : JL084A Module not included
  • Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
  • Module Slots : 2x Expansion Module Slots - 2x JL083A (4x 10GB SFP+) Modules Included
  • Module Options : JL081A (4 1/2.5/5/10 GbE HPE Smart Rate Module), JL084A (4-port Stacking Module), JL078A ( 1QSFP+ 40GbE), JL083A (4SFP+ MACsec), JL079A (2QSFP+ 40GbE)
  • Fan Module Options : 1x JL088A Fan Tray included
  • Power Supplies Included : 1x JL085A 250W AC PSU included - 2x Slots - 2nd PSU ordered separately
  • Power Supply Options : JL085A (250W), JL086A (680W), JL087A (1050W)
  • Switching Capacity : 480 Gbps
  • Forwarding Rate : Up to 285.7 Mpps
  • MAC Address Table Size : 64,000
  • Latency : < 2.8 µs (1000Mb)
  • Model Number : JL430A
  • Part Number : JL430A
  • Condition : New


Included

  • One (1) NEW Aruba HPE JL430A 3810 Series 24x 10GB SFP+ 2x Expansion Module Slot Switch as described above
