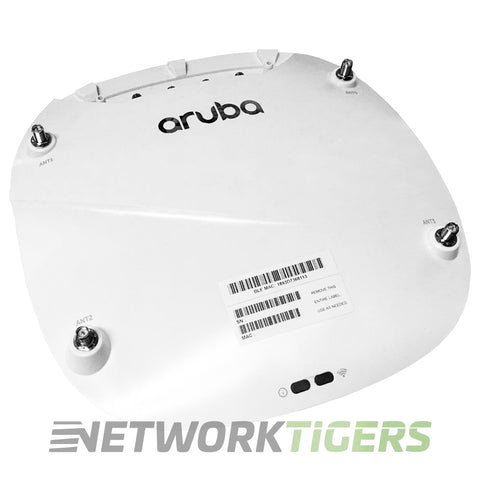

The HPE Aruba JZ023A AP-344 (US) is a dual radio access point that supports 802.11ac with MU-MIMO technology. It operates on both the 2.4 GHz and 5 GHz frequencies, providing data link protocols including IEEE standards for a wide range of compatibility.
With a maximum data rate of up to 2166 Mbps, this access point offers high-speed wireless connectivity ideal for demanding network environments in the US regulatory domain. The external antennas ensure optimal coverage and performance across your network setup.
For efficient communication within your infrastructure, consider integrating the HPE Aruba JZ023A AP-344 into your business environment to enhance connectivity without compromising reliability or speed requirements suitable for various applications needing robust networking solutions at scale.
Aruba AP-344 (US) Dual 4x4:4 MU-MIMO Radio Antenna Connectors Smart Rate Unified Campus AP.
- Interface Ports : 1x HPE SmartRate port, 1x 1 Gigabit RJ45
- MIMO Technology : MU-MIMO (Wave 2)
- Management Ports : 1x USB 2.0
- Antenna Ports : 8x Omni-Directional (2 Sets of 4x RP-SMA antenna connectors)
- Power Options : Power over Ethernet (PoE) - 48Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 48Vdc nominal, +/- 5% - Power Sources sold separately (Injector and Power Adapter)
- Frequency : 2.4 GHz, 5 GHz
- Data Link Protocol : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wireless Protocol : 802.11a/b/g/n/ac
- Maximum Data Rate : 2166 Mbps
- Regulatory domain : US
- Capacity : BSSIDs per radio = 16, Wireless clients per Wi-Fi radio = 256
- Mounts : The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling (JW045A)
- Model Number : JZ023A
- Part Number : JZ023A, AP-344, AP-344-US
- Condition : New

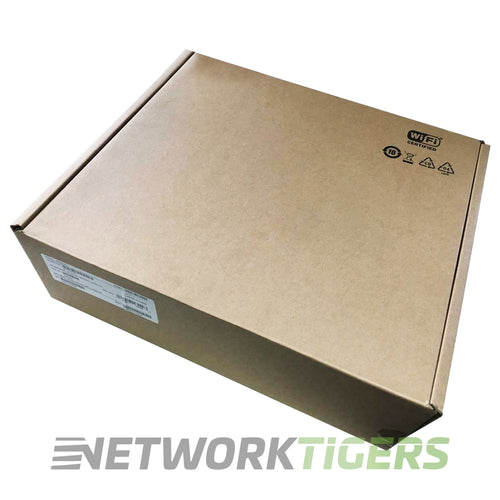

- One (1) NEW HPE Aruba JZ023A AP-344 (US) Dual Radio 802.11ac 4x4:4 MU-MIMO Ext Ant WAP as described above
