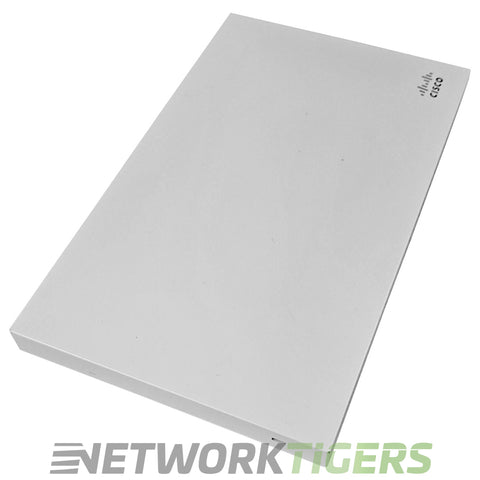

The Cisco Meraki MR53 is an indoor Wi-Fi 5 (802.11ac Wave 2) access point managed from the Meraki Dashboard. Both client radios are 4x4 MU-MIMO with 4 spatial streams, for an aggregate frame rate of up to 2.5 Gbps, with up to 1,733 Mbps on 5 GHz and 800 Mbps on 2.4 GHz.
A third dual-band radio handles WIDS/WIPS, spectrum analysis, and location analytics, and a fourth radio handles Bluetooth Low Energy beacons and scanning. Integrated omnidirectional antennas give 5.5 dBi of gain on 2.4 GHz and 6.2 dBi on 5 GHz.
It has one 2.5 Gigabit multigigabit RJ-45 port and one Gigabit RJ-45 port, so the uplink is not held to Gigabit on a multigigabit switch. Full function needs 802.3at PoE+, at 21W maximum; 802.3af runs it in a restricted mode. A 12V DC input is also available. The unit measures 10.56 x 6.38 x 1.58 inches and weighs 29.6 oz, and the MA-MNT-MR-9 mount kit is included.
For external antennas, see the MR53E-HW. The MR52-HW has the same radios with two Gigabit ports, and the MR55-HW is the Wi-Fi 6 step up. The access point is sold unclaimed; a Meraki license is required, purchased separately.
This seller refurbished Cisco Meraki MR53-HW access point is tested, working, and covered by the NetworkTigers one-year warranty.
- Wi-Fi Standard : Wi-Fi 5 (802.11ac Wave 2)
- Managed By : Cisco Meraki Dashboard (cloud)
- Licensing : Unclaimed - Meraki license required, sold separately
- Suggested Use : Indoor - lecture halls, offices, hospitals (high density)
- Region : US (FCC)
- Radios : 2.4 GHz and 5 GHz client radios plus dual-band WIDS/WIPS scanning radio and BLE radio
- Spatial Streams per Radio : 4x4 MU-MIMO with 4 spatial streams on each band
- Maximum Data Rate : 2.5 Gbps aggregate (1,733 Mbps 5 GHz, 800 Mbps 2.4 GHz)
- Bluetooth / IoT Radios : BLE radio - beacon and BLE scanning
- PoE Standard : 802.3at PoE+ (21W max) - 802.3af restricted mode
- DC Power Input : 12V DC input (5.5 x 2.5 mm, center positive) - adapter sold separately
- Uplink Ports : 1x 100M/1G/2.5G multigigabit RJ-45, 1x 10/100/1000 RJ-45
- Antenna Type : Internal omnidirectional - 5.5 dBi (2.4 GHz), 6.2 dBi (5 GHz)
- Antenna Ports : None (internal antennas)
- Mounting Options : Desk, wall, or ceiling - MA-MNT-MR-9
- Mounts Included : Yes - MA-MNT-MR-9 kit
- Model Number : MR53-HW
- Part Number : MR53-HW, MR53
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco Meraki MR53-HW Wi-Fi 5 802.11ac Internal Antenna Unclaimed WAP w/ Mounts as described above

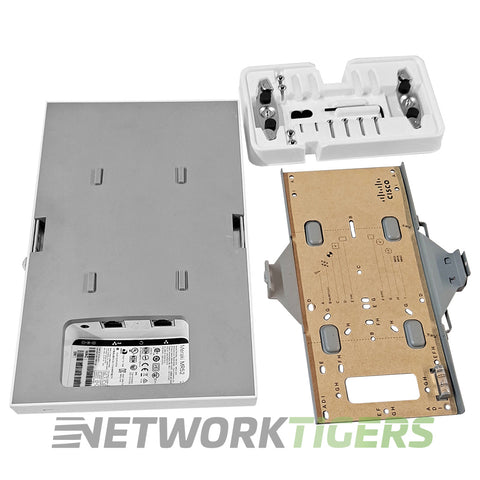

- One (1) MA-MNT-MR-9 Wall Mount Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Power Adapter Not Included
- Licenses are sold directly by Meraki
