The Cisco MR74-HW Meraki MR74 Series is a high-performance 802.11ac MU-MIMO (Multiple-User, Multiple Input/Multiple Output) outdoor wireless access point. It's rugged construction and advanced features offer reliable connectivity in extreme weather conditions.
The MR74-HW offers dual-band functionality, allowing an aggregated data rate of 1.3 Gbps using both the 2.4 and 5 GHz radios. This enables faster data transfer rates and better network performance overall.
This device boasts an impressive maximum transmission power of up to 20 dBm. With multiple external antennas that enhance signal strength and reduce interference, users can expect wide-ranging coverage even in large outdoor spaces.
Cisco Meraki MR74-HW: Meraki MR74 Cloud Managed 802.11ac AP. This Access Point is Unclaimed.
- Interface Ports : 1x 1 Gigabit Ethernet RJ45
- Radio : 1x 2.4 GHz 802.11b/g/n radio, 1x 5 GHz 802.11a/n/ac radio, 1x 2.4 GHz & 5 GHz dual band WIDS/WIPS, spectrum analysis, and location analytics radio, 1x 2.4 GHz Bluetooth Low Energy (BLE) radio - Concurrent operations of all four radios
- Management Ports : Cloud Managed
- Multi User Multiple Input Multiple Output (MU-MIMO) : The MR74 offers MU-MIMO (an 802.11ac Wave 2 standard) for efficient transmission to multiple clients
- Antenna Options : 4x External N-type female antenna connectors - Antennas sold separately - not included - Options for Antenna are MA-ANT-20. MA-ANT-21, MA-ANT-23, MA-ANT-25, or MA-ANT-27
- Power Options : Power over Ethernet - 37 - 57 V (802.3af compatible) - MA-INJ-4-US Injector Sold Separately
- Frequency : 2.4 GHz, 5 GHz
- Data Link Protocol : 802.11ac
- Maximum Data Rate : 1.3 Gbps

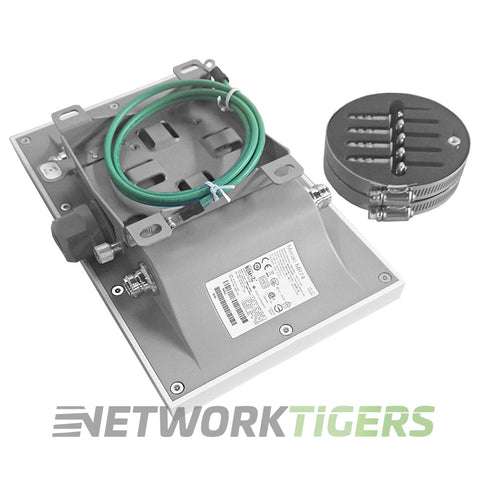

- Mounts : Wall Mount from the MA-MNT-MR-7 Kit Included
- Model Number : MR74-HW
- Part Number : MR74-HW, MR74-HW=, MR74-HW-WS
- Condition : New

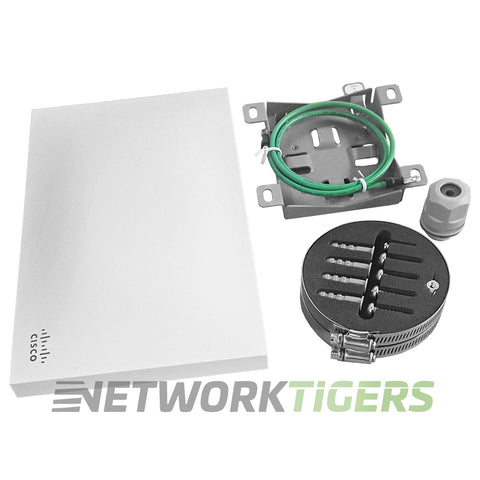

- One (1) NEW Cisco Meraki MR74-HW Outdoor 4x Radio 2x2 MU-MIMO 802.11ac Unclaimed WAP as described above
