The Cisco MS390-48P-HW is a part of the Meraki MS390 Series, which offers high-performance networking solutions for various businesses. This switch delivers an exceptional switching capacity of 256 Gbps and a forwarding rate performance of 190.48 Mpps.
The MS390-48P-HW can handle heavy workloads without reducing speed or efficiency. This makes it suitable for organizations that require seamless connectivity for their mission-critical applications.

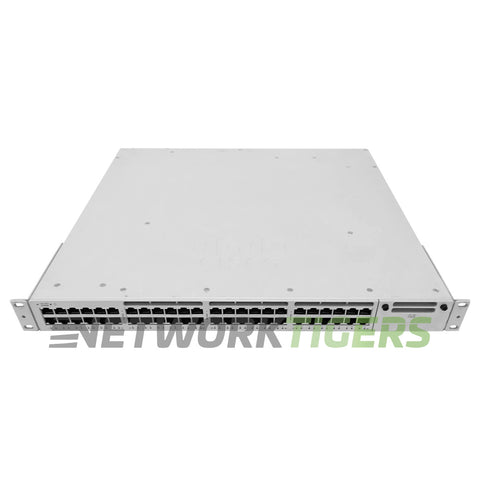

This switch features forty-eight Gigabit Ethernet PoE+ ports and one uplink module slot. The module slot extends flexibility, offering either 10GB or 40GB options. This switch provides network expansion options while delivering power over ethernet capabilities for devices such as IP phones, surveillance cameras, or access points. It supports both Layer 2 and Layer 3 functionalities, enabling organizations to build secure VLANs and implement routing protocols as needed.
Cisco Meraki MS390-48P-HW: 48 1 Gigabit Ethernet RJ-45 ports. This switch comes with a 715WAC PSU. This switch also features 2 120G hardware stacking ports. Unclaimed - License is not included. This is sold directly by Meraki.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 1x Expansion Module Slot - Modules are not included - Sold Separately. MA-MOD-2X40G (2x 40GB Uplink Module), MA-MOD-4X10G (4x 10GB Uplink Module), MA-MOD-8X10G (8x 10GB Uplink Module)
- Management Ports : 1x RJ-45 Management Interface - Cloud Managed

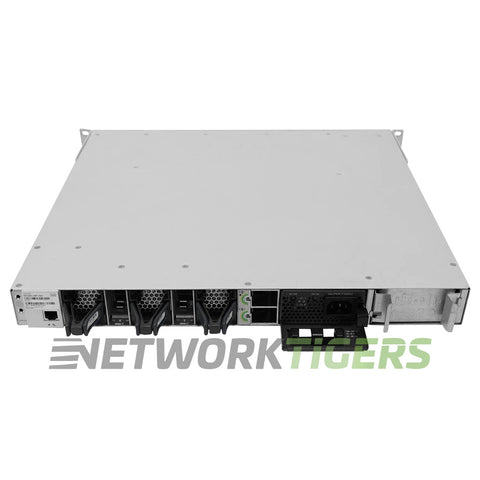

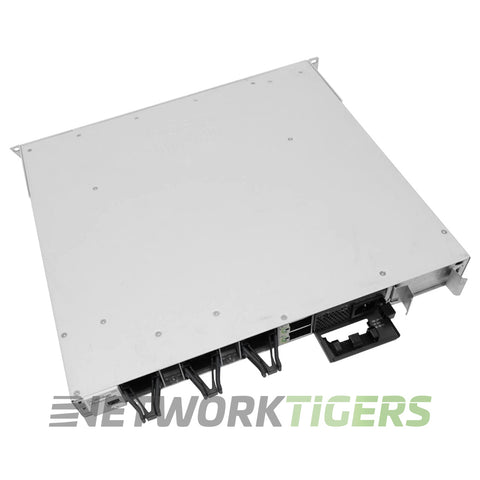

- Stacking Ports : 2x Stacking ports (Rear of Switch) - Stacking Cable options are MA-CBL-120G-50CM, MA-CBL-120G-1M, MA-CBL-120G-3M - Cables are sold separately
- Stacking Options : Physically stack up to 8 switches with 480 Gbps of stacking bandwidth - Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
- Stacking Cable Options : MA-CBL-120G-50CM, MA-CBL-120G-1M, MA-CBL-120G-3M - Cables are sold separately
- Module Slots : 1x Expansion Module Slot - Modules are not included - Sold Separately
- Module Options : MA-MOD-2X40G (2x 40GB Uplink Module), MA-MOD-4X10G (4x 10GB Uplink Module), MA-MOD-8X10G (8x 10GB Uplink Module)
- Fan Module Options : 3x MA-FAN-16K2 Hot Swap Fans
- Power Supplies Included : 1x MA-PWR-715WAC Included - 2x Total PSU Slots
- Power Supply Options : MA-PWR-715WAC, MA-PWR-1100WAC
- PoE Budget : 437W w/ Primary PSU, 1152W w/ Secondary PSU
- Switching Capacity : 256 Gbps
- Forwarding Rate : 190.48 Mpps
- MAC Address Table Size : 32,000
- Model Number : MS390-48P-HW
- Part Number : MS390-48P-HW, MS390-48P-HW=, MS390-48P-HW-WS
- Condition : New
- One (1) NEW Cisco Meraki MS390-48P-HW 48x 1GB PoE+ RJ-45 1x Module Slot Unclaimed Switch as described above
