The NEW Dell N3224F-ON EMC switch offers high-capacity performance with 24x 1GB SFP ports, 4x 10GB SFP+ ports, and 2x QSFP28 F-B Air OS6 Switch. With a switching capacity of up to 528Gbps and a forwarding rate of 733Mpps, it can efficiently handle large volumes of data.
The MAC address table size is 32,000, allowing efficient network management. This switch supports VLANs, enabling segmentation for better network security and organization. Multiple connectivity options are available with this switch, making it versatile for various networking needs. It also has low latency, ensuring fast communication between devices. Experience reliable network performance with the Dell N3224F-ON EMCswitch.

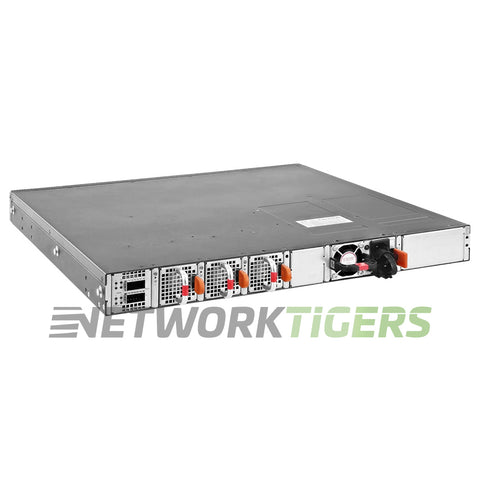

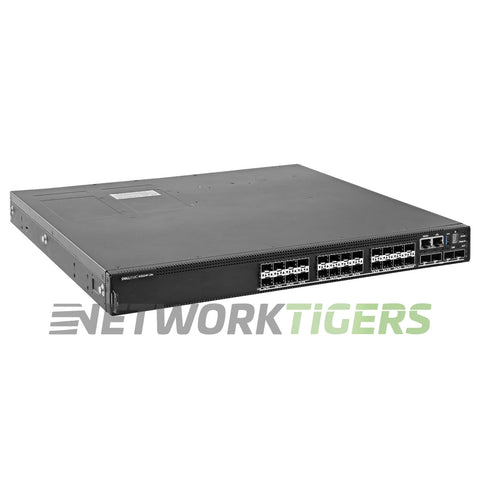

NEW Dell N3224F-ON EMC 24x 1GB SFP 4x 10GB SFP+ 2x QSFP28 F-B Air OS6 Switch
- Network Ports : 24x 1 Gigabit Ethernet SFP
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+, 2x 100 Gigabit Ethernet QSFP28 (Stacking) on rear of switch.
- Management Ports : 1x USB, 1x Out of Band Management RJ45, 1x MicroUSB (Type B) Console, RJ45 Console with RS232 signaling
- Product Family : EMC PowerSwitch N3200-ON Series
- Firmware Version : OS6
- Fan Modules AirFlow Direction : 3x Fan Modules Included - Front-to-Back Airflow (Normal)
- Power Supplies Included : 1x DPS-550 550W AC PSU Included - 2x Slots - 2nd PSU Not Included - Ordered Separately
- Switching Capacity : 528Gbps
- Forwarding Rate : 733Mpps
- MAC Address Table Size : 32,000
- VLANs Supported : 4,094
- Rack Mounts : Not Included - Ready Rails ordered separately.
- Model Number : N3224F-ON
- Part Number : N3224F-ON
- Condition : New
- One (1) NEW Dell N3224F-ON EMC 24x 1GB SFP 4x 10GB SFP+ 2x QSFP28 F-B Air OS6 Switch as described above
