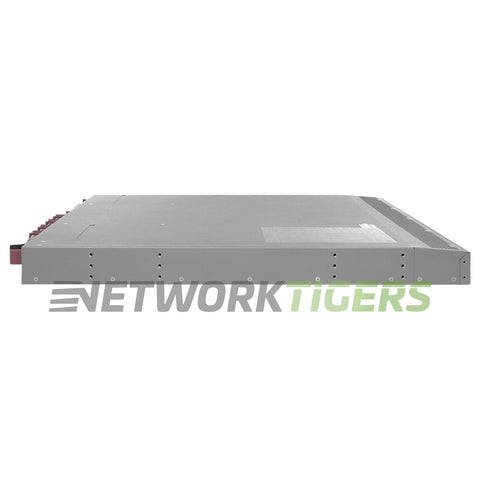

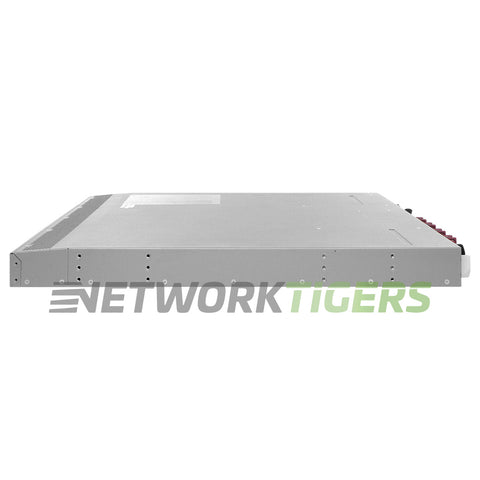

NEW Cisco N3K-C3132C-Z 32x 100 Gigabit QSFP28 Front-to-Back Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-8215

Overview

The NEW Cisco N3K-C3132C-Z switch features 32 ports of 100 Gigabit QSFP28 connectivity with front-to-back airflow for efficient cooling. With a switching capacity of 6.4 Tbps and a forwarding rate of 2 Bpps, this switch can handle high-volume data traffic seamlessly.

The MAC address table size ranges from 32,000 to 288,000 entries, providing flexibility for different network sizes and configurations. Designed for reliable performance in data centers or enterprise networks, the Cisco N3K-C3132C-Z offers robust capabilities to support your networking needs.

This product-centric content focuses on key specifications without unnecessary embellishments while highlighting the essential features that make this switch ideal for demanding networking environments where high-speed connectivity is crucial.

NEW Cisco N3K-C3132C-Z 32x 100 Gigabit QSFP28 Front-to-Back Airflow Switch


Specifications

  • Network Ports : 32x 10 Gigabit Ethernet QSFP28
  • Uplink Ports : 2x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ45 Console Management, 1x RJ45 and SFP Management, 1x USB
  • Switch Version : NS-OS
  • System Memory : 128 GB Flash
  • AirFlow Direction : Front-to-Back Airflow (Port Side Intake/ Reversed Airflow)
  • Fan Modules : 4x NXA-FAN-30CFM-F Fan Module Included
  • Power Supplies : 2x NXA-PAC-650W-PI Power Supplies Included
  • Switching Capacity : 6.4 Tbps
  • Forwarding Rate : 2 Bpps
  • MAC Address Table Size : 32,000 min 288,000 max
  • Max IPv4 Host Routes : 16K min/168K max
  • Multicast Routes : 8000 (IPv4)
  • VLANs Supported : 4096
  • Packet Buffer : 32 MB
  • Number of EtherChannels : 24
  • CPU : 4 Core
  • Model Number : N3K-C3132C-Z
  • Part Number : N3K-C3132C-Z, N3K-C3132C-Z=, N3K-C3132C-Z-WS
  • Condition : New


Included

  • One (1) NEW Cisco N3K-C3132C-Z 32x 100 Gigabit QSFP28 Front-to-Back Airflow Switch as described above
