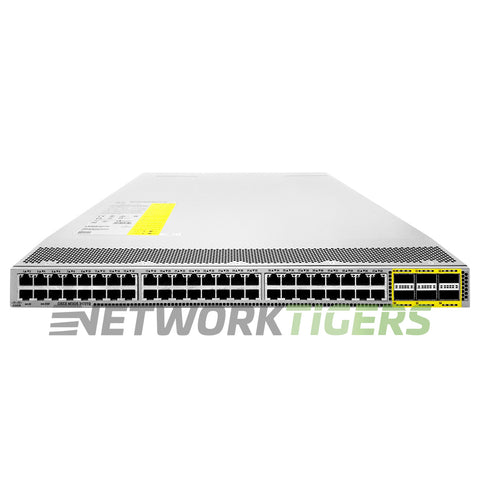

NEW Cisco N3K-C3172TQ-32T 32x 10GB Copper 6x 40GB QSFP+ Back-to-Front Air Switch
New

NEW Cisco N3K-C3172TQ-32T 32x 10GB Copper 6x 40GB QSFP+ Back-to-Front Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3352
UPC: 882658866289

Overview

The Cisco N3K-C3172TQ-32T switch offers high-speed connectivity with 32 10GB copper ports and 6 40GB QSFP+ uplink ports. With a switching capacity of 1.4 Tbps, this switch can efficiently handle large amounts of data. The MAC Address Table Size has up to an immense 288,000 entries.

This back-to-front air cooling switch provides reliable performance for demanding networking environments. With a forwarding rate of up to 1 Bpps, it delivers fast and consistent data transmission speed.

Cisco N3K-C3172TQ-32T : Nexus 3172TQ, 32 10GBase-T RJ45 and 6 QSFP+ ports. Each QSFP+ port can support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet. Back to Front Airflow (Port Side Exhaust/Forward Airflow).


Specifications

  • Network Ports : 32x 10 Gigabit Ethernet RJ45 - To enable the remaining 16 10GBASE-T ports, the customer should install the 16-port upgrade license
  • Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ45 Serial Console, 1x Gigabit Management, 1x USB
  • AirFlow Direction : Back to Front Airflow (Port Side Exhaust/Forward Airflow)
  • Fan Module Options : 4x NXA-FAN-30CFM-F Fan Modules Included
  • Power Supplies Included : 2x NXA-PAC-500W PSU's included
  • Switching Capacity : 1.4 Tbps
  • Forwarding Rate : 1 Bpps
  • MAC Address Table Size : 288,000
  • Model Number : N3K-C3172TQ-32T
  • Part Number : N3K-C3172TQ-32T, N3K-C3172TQ-32T=, N3K-C3172TQ-32T-WS
  • Condition : New


Included

  • One (1) NEW Cisco N3K-C3172TQ-32T 32x 10GB Copper 6x 40GB QSFP+ Back-to-Front Air Switch as described above
