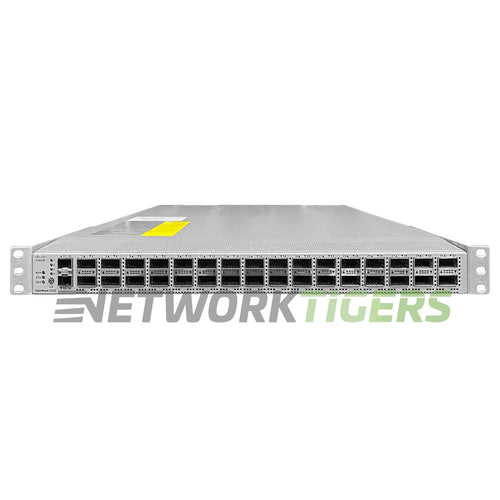

The Cisco N3K-C3232C switch is a high-performance data center device with 32x 100GB QSFP28 and 2x ports of 10GB SFP+. It is designed for efficient networking and has a switching capacity of up to 6.4 Tbps, allowing fast and seamless communication between devices.
With its forwarding rate reaching impressive speeds of around 3.3 Bpps (billion packets per second), this switch ensures smooth data transmission even in complex network environments. Its MAC address table can accommodate up to an extensive amount; approximately at least forty thousand entries
Thanks to its low latency capability whereby the write speed reaches as little time as roughly only 450ns (nanoseconds). This ensures minimal delays during packet delivery while optimizing overall system performance.
Cisco N3K-C3232C: Nexus 3232C 32 x 100G,1RU switch. Back to Front Airflow (Port Side Exhaust/Forward Airflow).
- Network Ports : 32x 100 Gigabit Ethernet QSFP28 (10, 25, 40, 50, and 100 Gbps) - up to a maximum of 128 x 25-Gbps ports
- Uplink Ports : 2x 10 Gigabit Ethernet SFP+
- Management Ports : 1x Gigabit Management RJ45, 1x RS-232 Serial Console, 1x USB (TypeA)
- Product Family : Nexus 3200 Series
- System Memory : 8GB DRAM. 64 GB Flash
- AirFlow Direction : Back to Front Airflow (Port Side Exhaust/Forward Airflow)
- Fan Modules : 4x NXA-FAN-30CFM-F (3+1) Fan Modules included
- Power Supplies : 2x NXA-PAC-650W-PE PSU's Included
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 3.3 Bpps
- MAC Address Table Size : 40,000
- Maximum number of Longest-Prefix-Match (LPM) routes : 128,000
- Maximum number of IP host entries : 72,000
- Maximum number of Layer 3 multicast entries : 64,000
- VLANs Supported : 4096
- Packet Buffer : 16MB
- Latency : 450ns
- CPU : 4 Core
- Model Number : N3K-C3232C
- Part Number : N3K-C3232C, N3K-C3232C=, N3K-C3232C-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco N3K-C3232C 32x 100GB QSFP28 2x 10GB SFP+ Back-to-Front Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
