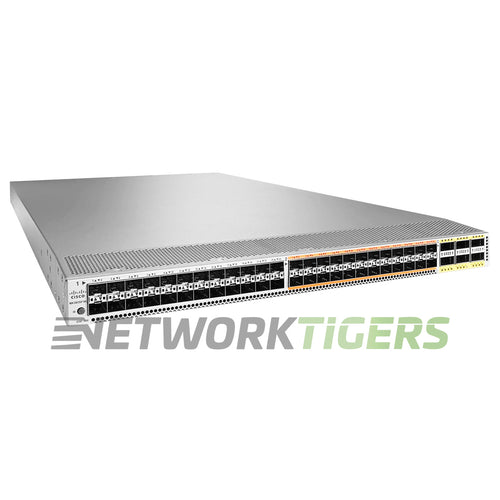

The Cisco N5K-C5672UP-16G is a high-performance switch for data centers and large-scale enterprise networks. With 48x 10GB SFP+ ports (24 of them are UP or Universal Ports) and 6x 40GB QSFP+ ports, it offers flexible connectivity options.
This switch has a capacity of up to 1.44 Tbps, allowing smooth data flow even in demanding environments. The forwarding rate of the switch is impressive at around 1071 Mpps, with smaller packets measuring about 64 bytes.
Featuring a MAC Address Table Size of 256,000 entries. This allows efficient handling and swiftly identification of connected devices across your network infrastructure.
With low latency measured at just microseconds,-you can expect minimal delays during transmission, resulting in improved operational efficiency within your network infrastructures
Cisco Nexus N5K-C5672UP-16G: 48x fixed 10 Gigabit Ethernet SFP+ ports with 24 of the 48x ports being unified, and 6 fixed 40 Gigabit Ethernet QSFP+ ports with 10 and 40 Gigabit Ethernet FCoE support on all respective ports and 2/4/8/16-Gbps Fibre Channel on all the unified ports. The first 24 ports can support 1G Ethernet. Back-to-Front Airflow (Port Side Exhaust / Fan Side Intake).
- Network Ports : 48x 10 Gigabit Ethernet SFP+ (24x are Unified ports (UP) that support 16-, 8-, 4-, and 2-Gbps Fibre Channel)
- Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x Console RJ45, 1x Gigabit Ethernet Management RJ45, 1x USB
- Switch Version : Back-to-Front Airflow (Port Side Exhaust / Fan Side Intake)
- AirFlow Direction : 3x N6K-C6001-FAN-F - Fan Modules (2+1 Redundancy)
- Fan Module Options : 2x N55-PAC-1100W - AC Power Supply (1+1 redundancy)
- Switching Capacity : 1.44 Tbp
- Forwarding Rate : 1071 Mpps (64-byte packets)
- MAC Address Table Size : 256 000
- Latency : 1 microsecond
- Model Number : N5K-C5672UP-16G
- Part Number : N5K-C5672UP-16G, N5K-C5672UP-16G=, N5K-C5672UP-16G-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco N5K-C5672UP-16G 48x 10GB SFP+ (24x UP) 6x 40GB QSFP+ B-F Air Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
