NEW Cisco N9K-C92160YC-X 48x 25GB SFP+ 6x 40GB QSFP+ Front-to-Back Air Switch
New

NEW Cisco N9K-C92160YC-X 48x 25GB SFP+ 6x 40GB QSFP+ Front-to-Back Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-8176
UPC: 882658893711

Overview

The Dell S5000-RA 210-AAWU SAN Switch is a high-performance networking solution with an impressive switching capacity of up to 1.28Tbps in full-duplex mode and a forwarding rate of 960Mpps. This switch features four QSFP+ ports for fast connectivity, making it ideal for demanding data center environments.

With a MAC address table size of 128,000 entries, this switch can easily handle large networks without compromising performance. The Dell S5000-RA offers a reliable airflow design to ensure optimal cooling efficiency and stability during operation.

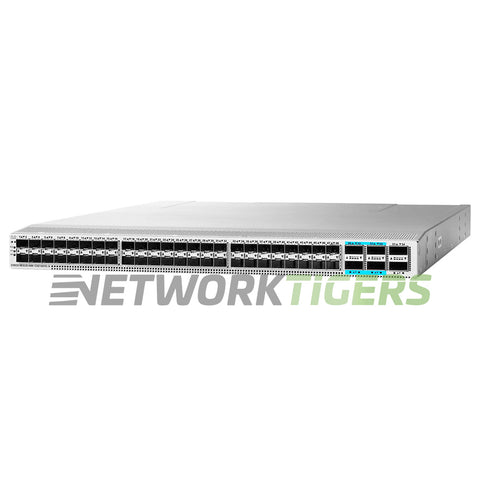

Cisco Nexus N9K-C92160YC-X: Nexus 9200 with 48p 1/10G/25G SFP+ and 6p 40G QSFP or 4p 100G QSFP28.


Specifications

  • Network Ports : 48x 25 Gigabit Ethernet SFP+
  • Uplink Ports : 6x 40 Gigabit Ethernet QSFP+ or 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x Gigabit RJ45, 1x SFP, 1x Serial Console, 1x USB Type A
  • AirFlow Direction : Front to Back Airflow (Port-side Intake/Reversed Airflow)
  • Fan Module Options : 4x NXA-FAN-30CFM-B Fan Modules Included
  • Power Supplies Included : 2x NXA-PAC-650W-PI PSU's Included
  • Switching Capacity : 3.2 Tbps
  • Forwarding Rate : 2.5 Bpps
  • MAC Address Table Size : 92,000
  • System Memory : 16 GB
  • Model Number : N9K-C92160YC-X
  • Part Number : N9K-C92160YC-X, N9K-C92160YC-X=, N9K-C92160YC-X-WS
  • Condition : New


Included

  • One (1) NEW Cisco N9K-C92160YC-X 48x 25GB SFP+ 6x 40GB QSFP+ Front-to-Back Air Switch as described above
