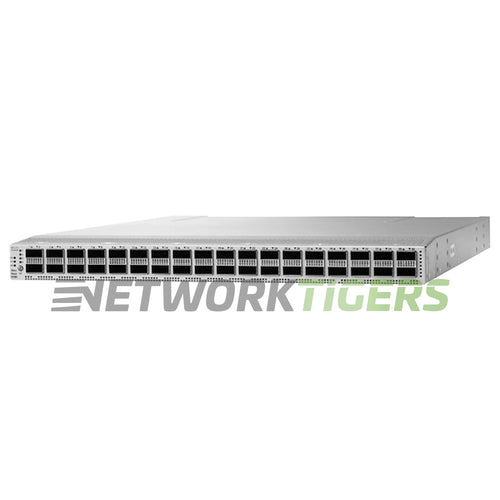

Cisco N9K-C9236C 36x 100GB QSFP28 Back-to-Front Airflow Switch

Cisco N9K-C9236C 36x 100GB QSFP28 Back-to-Front Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9015
UPC: 882658902888

Overview

The Cisco N9K-C9236C is a high-performance switch designed for data centers. It offers 36 ports of 100GB QSFP28 connectivity with back-to-front airflow, ensuring efficient cooling and optimal network performance.

With a switching capacity of 7.2 Tbps and a forwarding rate of 5.3 Bpps, this switch can handle large amounts of traffic without any bottlenecks or delays. The MAC address table size reaches up to an impressive 92,000 entries.

This Cisco switch provides reliable and fast networking capabilities crucial for today's demanding applications such as cloud computing and big data processing. Its advanced features include support for virtualization technologies like VXLAN (Virtual Extensible LAN), making it suitable for modern multi-tenant environments.

Cisco Nexus N9K-C9236C: Nexus 9200 with 36 100 Gigabit Ethernet QSFP28 ports and 2 PSU's. Back-to-Front Airflow (Port Side Exhaust / Forward Airflow).


Specifications

  • Network Ports : 36x 100 Gigabit Ethernet QSFP28
  • Port Supported Speeds : 1, 10, 25, 40, 50, and 100 Gbps
  • Management Ports : 3x RJ45 Management, 1x RS-232 Serial, 1x USB
  • SSD : 64 GB
  • System Memory : 16 GB
  • AirFlow Direction : Back-to-Front Airflow (Port Side Exhaust / Forward Airflow)
  • Fan Modules : 4x NXA-FAN-30CFM-F Fan Modules Included
  • Power Supplies : 2x NXA-PAC-650W-PE PSU's Included
  • Switching Capacity : 7.2 Tbps
  • Forwarding Rate : 5.3 Bpps
  • MAC Address Table Size : 92,000
  • Number of LPM Routes : Default = 6,000, LPM heavy mode = 262,000
  • Multicast Routes : Shipping = 8,000, Maximum = 32,000
  • VLANs Supported : 3,967
  • Packet Buffer : 30 MB
  • CPU : 4 cores
  • Model Number : N9K-C9236C
  • Part Number : N9K-C9236C, N9K-C9236C=, N9K-C9236C-WS
  • Condition : Seller refurbished

Datasheet

More information on this Cisco N9K-C9236C.

Included

  • One (1) Seller Refurbished Cisco N9K-C9236C 36x 100GB QSFP28 Back-to-Front Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Brackets/Rails Not Included
