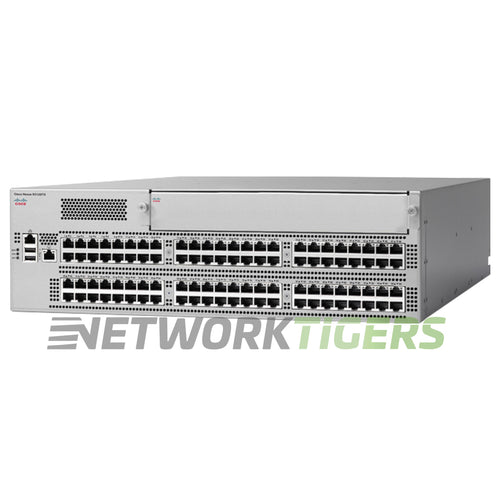

Cisco N9K-C93128TX 96x 10GB Copper 8x 40GB QSFP+ Front-to-Back Airflow Switch

Cisco N9K-C93128TX 96x 10GB Copper 8x 40GB QSFP+ Front-to-Back Airflow Switch

$ 551.99
5 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6879
UPC: 882658692925

Overview

The Cisco N9K-C93128TX is a high-performance switch designed for data center networks. With 96x 10GB copper ports and 8x 40GB QSFP+ ports, this switch offers impressive switching capacity of up to 2.56 Tbps and a forwarding rate of 750 Mpps.

Ideal for medium to large-scale deployments, the Cisco N9K-C93128TX features a MAC address table size that supports 96,000 entries. The front-to-back airflow design ensures efficient cooling in rack-mount environments.

Cisco Nexus N9K-C93128TX: Nexus 9300 with 96p 100M/1/10G-T and 8p 40G QSFP. Front-to-Back Airflow (Port Side Intake /Reversed Airflow).


Specifications

  • Network Ports : 96x 10 Gigabit Ethernet RJ45
  • Uplink Ports : 8x 40 Gigabit Ethernet QSFP+ ports (N9K-M12PQ uplink module with only 8 ports active)
  • Management Ports : 1x RS-232 console, 1x Out-of-band Management, 2x USB 2.0
  • Module Slots and Options : 1x Slot (See "Uplink Ports")
  • Fan Modules AirFlow Direction : 3x N9K-C9300-FAN2 Included - Front-to-Back Airflow (Port Side Intake /Reversed Airflow)
  • Power Supplies Included : 2x NXA-FAN-30CFM-B Power Supplies Included - Front-to-Back Airflow (Port Side Intake /Reversed Airflow)
  • Switching Capacity : 2.56 Tbps
  • Forwarding Rate : 750 Mpps
  • MAC Address Table Size : 96,000
  • Rack Mounts : NOT INCLUDED - Sold separately.
  • Model Number : N9K-C93128TX
  • Part Number : N9K-C93128TX, N9K-C93128TX=, N9K-C93128TX-WS
  • Condition : Seller refurbished

Datasheet

More information on this Cisco N9K-C93128TX.

Included

  • One (1) Seller refurbished Cisco N9K-C93128TX 96x 10GB Copper 8x 40GB QSFP+ Front-to-Back Airflow Switch as described above
  • Two (2) Power Cords Included
  • One (1) Uplink Module N9K-M12PQ Included
  • Two (2) Power Supplies N9K-PAC-1200W Included
  • Three (3) Fans N9K-C9300-FAN2 Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Brackets/Rails Not Included
