The Cisco N9K-C93180YC-FX3 is a high-capacity switch that delivers up to 3.6 Tbps switching capacity and forwards data at rates of 1.2 Bpps, designed for modern network requirements.
It features 48 ports supporting SFP28 with speeds up to 25 GbE and six QSFP28 uplink ports enabling connectivity at 40/100 GbE options, providing flexible scaling capabilities. The device supports a MAC address table size of up to 512,000 entries for complex systems requiring extensive scalability in Layer-2 configurations.
This model incorporates front-to-back airflow management (F-B Air), catering to cooling efficiency in dense deployments while maintaining operational reliability under varying conditions.

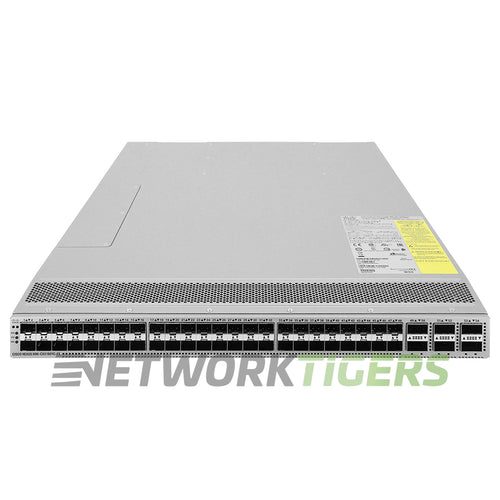

Cisco N9K-C93180YC-FX3 48x 25GB SFP28 6x 100GB QSFP28 F-B Air Switch
- Network Ports : 48x 25 Gigabit Ethernet SFP28
- Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x RJ45 Management, 1x USB, 1x RS-232 Serial
- Switch Version : Cisco NX-OS
- AirFlow Direction : Port Side Intake (Front-to-Back Airflow)
- Fan Module Options : 4x NXA-FAN-35CFM-PI Fan Modules Included - Port Side Exhaust (Back-to-Front Airflow)
- Power Supplies Included : 1x NXA-PAC-650W-PI PSU Included (N+1 Redundancy) - 2x Slots - 2nd PSU ordered separately
- Power Supply Options : NXA-PAC-650W-PE is the alternative airflow PSU option
- Switching Capacity : 3.6 Tbps
- Forwarding Rate : 1.2 Bpps
- MAC Address Table Size : 512,000
- Model Number : N9K-C93180YC-FX3
- Part Number : N9K-C93180YC-FX3
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco N9K-C93180YC-FX3 48x 25GB SFP28 6x 100GB QSFP28 F-B Air Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Four (4) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Rack Mount Brackets/Rails Not Included
