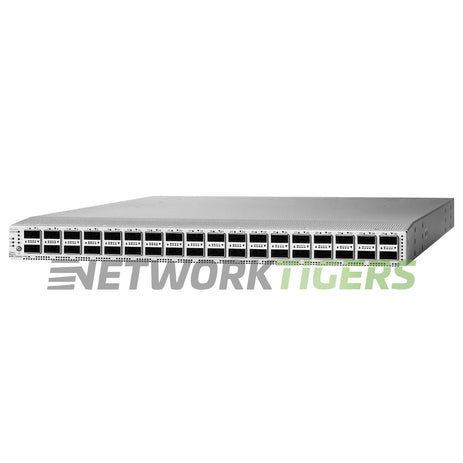

The Cisco N9K-C9336C-FX2 Nexus 9300-FX is a high-performance switch designed for data center environments. With its 32x 100GB QSFP28 ports and back-to-front airflow design, this switch provides efficient cooling and easy cable management.
One of the notable features of this switch is its optional power redundancy capability, allowing for increased reliability in critical infrastructure setups. The switching capacity of the N9K-C9336C-FX2 is an impressive 7.2 Tbps, ensuring smooth performance even during peak network traffic.
This switch can handle up to 2.8 billion packets per second (Bpps), making it suitable for demanding applications and workloads that require fast data processing.
Cisco Nexus N9K-C9336C-FX2: Nexus 9K Fixed with 36p 40G/100G QSFP28. Back-to-Front Airflow (Port Side Exhaust / Forward Airflow).
- Network Ports : 32x 100 Gigabit Ethernet QSFP28
- Port Supported Speeds : 1/10/25/40/100-Gbps Ethernet
- Management Ports : 1x USB, 1x Console RJ45, 1x Out of Band Management RJ45, 1x Out of Band Management SFP
- SSD : 128 GB
- System Memory : 24 GB
- AirFlow Direction : Back-to-Front Airflow (Port Side Exhaust)
- Fan Modules : 3x NXA-FAN-65CFM-PE Fan Modules Included
- Power Supplies : 2x NXA-PAC-350W-PE PSU's Included
- Switching Capacity : 7.2 Tbps
- Forwarding Rate : 2.8 Bpps
- MAC Address Table Size : 256,000
- Max IPv4 LPM Routes : 896,000
- Multicast Routes : 32,000
- VLANs Supported : 3,967 (Max)
- Packet Buffer : 40-MB
- Latency : less than 1 microsecond
- CPU : 4 cores
- Model Number : N9K-C9336C-FX2
- Part Number : N9K-C9336C-FX2, N9K-C9336C-FX2=, N9K-C9336C-FX2-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco N9K-C9336C-FX2 Nexus 9300-FX 32x 100GB QSFP28 Back-to-Front Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Three (3) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Cord Not Included
- Power Supplies Not Included
- Transceiver Modules Not Included
- Rack Mount Brackets/Rails Not Included
