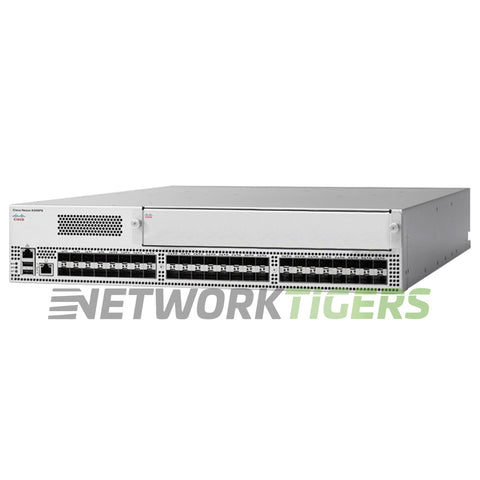

NEW Cisco N9K-C9396PX 48x 10GB SFP+ 12x 40GB QSFP+ Front-to-Back Airflow Switch

$ 1,164.99

Only 1 remaining Call if you need more

Main Quantity

Shipping: OVERNIGHT OPTION

Condition: New

Warranty: 365 days

SKU: NSN-8172

UPC: 882658686948

The Cisco N9K-C9396PX switch offers high performance with a 1.92 Tbps switching capacity and a forwarding rate of 1500 mpps. With a MAC address table size of 96,000, this switch is suitable for medium to large-scale networks requiring fast data transfer rates.

This Cisco switch features forty-eight 10GB SFP+ ports and twelve 40GB QSFP+ ports for flexible connectivity options. It is designed for scalability and reliability in networking infrastructure setups with crucial high bandwidth requirements.

Overall, the Cisco N9K-C9396PX provides an effective solution for organizations looking to enhance their network capabilities with a focus on speed, throughput abilities, and flexibility in port configurations.

Cisco Nexus N9K-C9396PX: Nexus 9300 with 48p 1/10G SFP+ and 12p 40G QSFP+. Front-to-Back Airflow (Port Side Intake /Reversed Airflow).

Network Ports : 48x 10 Gigabit Ethernet SFP+
Uplink Ports : See "Module Slots and Options"
Management Ports : 1x RS-232 Console, 1x Out of Band Management, 2x USB 2.0
Module Slots : 1x N9K-M12PQ Module Included - 12x 40 Gigabit Ethernet QSFP+
Module Options : N9K-M6PQ-E, N9K-M6PQ, N9K-M12PQ, N9K-M4PC-CFP2
AirFlow Direction : Front-to-Back Airflow (Port Side Intake /Reversed Airflow)
Fan Module Options : 3x N9K-C9300-FAN2 Fan Modules Included
Power Supplies Included : 2x N9K-PAC-650W AC Power Supplies Included
CPU : Dual-core 2.5-GHz x86 CPUs
Product Family : Nexus 9300 Series
Switching Capacity : 1.92 Tbps
Forwarding Rate : 1500 Mpps
MAC Address Table Size : 96,000
SSD and Memory : 64GB SSD Drive and 16GB of memory provide enhanced network performance.
Model Number : N9K-C9396PX
Part Number : N9K-C9396PX, N9K-C9396PX=, N9K-C9396PX-WS
Condition : New
