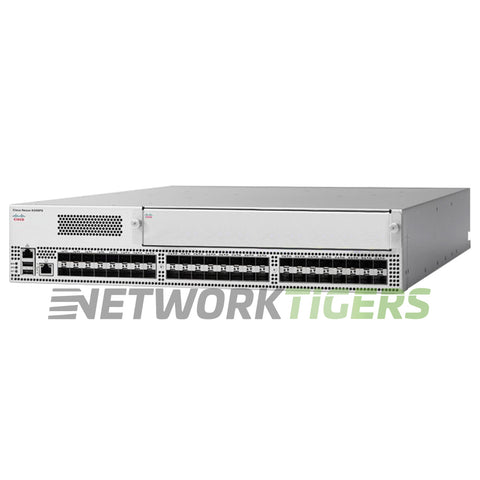

The Cisco N9K-C9396PX switch offers 48x 10GB SFP+ and 12x 40GB QSFP+ ports with back-to-front airflow. With a switching capacity of 1.92 Tbps and a forwarding rate of up to 1500 mpps, this switch is designed for high-performance network environments.
It has a MAC Address Table Size of up to 96,000 entries, ensuring efficient data processing and delivery. The combination of these features makes the Cisco N9K-C9396PX an ideal solution for maximizing network throughput while maintaining reliability in demanding networking setups.
Cisco Nexus N9K-C9396PX: Nexus 9300 with 48p 1/10G SFP+ and 12p 40G QSFP+. Back to Front Airflow (Port Side Exhaust /Forward Airflow).
- Network Ports : 48x 10 Gigabit Ethernet SFP+
- Uplink Ports : See "Module Slots and Options"
- Management Ports : 1x RS-232 Console, 1x Out of Band Management, 2x USB 2.0
- Module Slots : 1x N9K-M12PQ Module Included - 12x 40 Gigabit Ethernet QSFP+
- Module Options : N9K-M6PQ-E, N9K-M6PQ, N9K-M12PQ, N9K-M4PC-CFP2 - Not Included
- AirFlow Direction : Back to Front Airflow
- Fan Module Options : 3x N9K-C9300-FAN2-B Fan Modules Included
- Power Supplies Included : 2x N9K-PAC-650W-B AC Power Supplies Included
- Switching Capacity : 1.92 Tbps
- Forwarding Rate : 1500 mpps
- MAC Address Table Size : 96,000
- Model Number : N9K-C9396PX
- Part Number : N9K-C9396PX, N9K-C9396PX=, N9K-C9396PX-WS
- Condition : New
- One (1) NEW Cisco N9K-C9396PX 48x 10GB SFP+ 12x 40GB QSFP+ Back-to-Front Airflow Switch as described above
- SFP Modules Not Included
