The Cisco N9K-C9396TX is a high-performance switch designed for data centers. It provides fast connectivity options for various networking needs with 48x 10GB copper ports and 8x 40GB QSFP+ ports.
Featuring a front-to-back airflow design, this switch ensures efficient cooling and optimal performance. It has a switching capacity of up to 480 Gbps, enabling seamless handling of heavy network traffic. The forwarding rate reaches an impressive speed of up to1.92 Tbps, ensuring smooth data transmission.
With its large MAC address table size (up to 96,000), the switch can support extensive device connections efficiently.

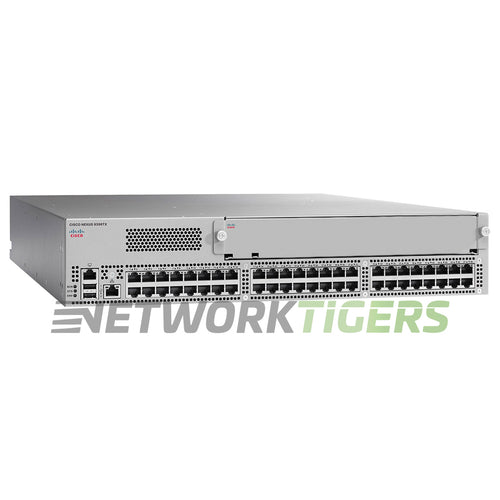

Cisco N9K-C9396TX 48x 10GB Copper 8x 40GB QSFP+ Front-to-Back Airflow Switch
- Network Ports : 48x 10 Gigabit Ethernet RJ-45
- Uplink Ports : See "Module Slots and Options"
- Management Ports : 2x USB, 1x Management (Gigabit LAN) RJ-45, 1x Serial RS-232 RJ-45
- Product Family : Nexus 9300 Series
- Module Slots : 1x N9K-M12PQ Module Included - 8x 40 Gigabit Ethernet QSFP+
- Module Options : N9K-M6PQ-E, N9K-M6PQ, N9K-M12PQ, N9K-M4PC-CFP2
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake / Reverse Airflow)
- Fan Module Options : 3x N9K-C9300-FAN2-F Fan Modules Included
- Power Supplies Included : 2x N9K-PAC-650W - 650W AC Power Supplies included
- Switching Capacity : 480 Gbps
- Forwarding Rate : 1.92 Tbps
- MAC Address Table Size : 96,000 (Maximum)
- Model Number : N9K-C9396TX
- Part Number : N9K-C9396TX, N9K-C9396TX=, N9K-C9396TX-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco N9K-C9396TX 48x 10GB Copper 8x 40GB QSFP+ Front-to-Back Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Three (3) Fan Modules Included
- One (1) Network Uplink Module Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Rack Mount Brackets/Rails Not Included
