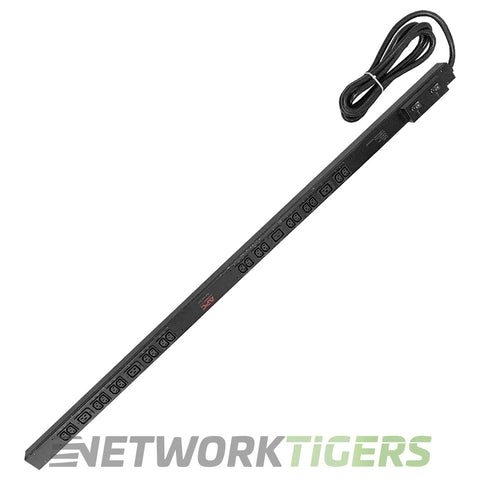

NEW APC AP7541 20x IEC 60320 C13 4x IEC 60320 C19 30A Zero U Basic Rack PDU
New

NEW APC AP7541 20x IEC 60320 C13 4x IEC 60320 C19 30A Zero U Basic Rack PDU

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0158
UPC: 731304225560

Overview

The NEW APC AP7541 30A Zero U Basic Rack PDU offers reliable power distribution for data centers and IT environments. With a load capacity 4992VA, this rack PDU features 20 IEC C13 outlets and 4 IEC C19 outlets, allowing flexibility in connecting various devices.

The input connection is a NEMA L6-30P plug with an input frequency of 50/60 Hz, accommodating different setups. The maximum current per phase is regulated at 24A for North America to ensure safe operation within standard parameters. This unit operates at both voltages -200V &208V, making it adaptable to changing requirements without compromising performance or quality standards.

NEW APC AP7541 20x IEC 60320 C13 4x IEC 60320 C19 30A Zero U Basic Rack PDU


Specifications

  • Power Output Connections : 20x IEC 60320 C13 4x IEC 60320 C19
  • Power Output Voltage : 200V, 208V
  • Input Connection : NEMA L6-30P
  • Input Frequency : 50/60 Hz
  • Input Amperage : 30A
  • Load Capacity : 4992VA
  • Regulatory Derated Input Current (North America) : 24A
  • Cord Length : 3.05 meters
  • Model Number : AP7541
  • Part Number : AP7541
  • Condition : New

Datasheet

More information on this APC AP7541.

Included

  • One (1) NEW APC AP7541 20x IEC 60320 C13 4x IEC 60320 C19 30A Zero U Basic Rack PDU as described above
