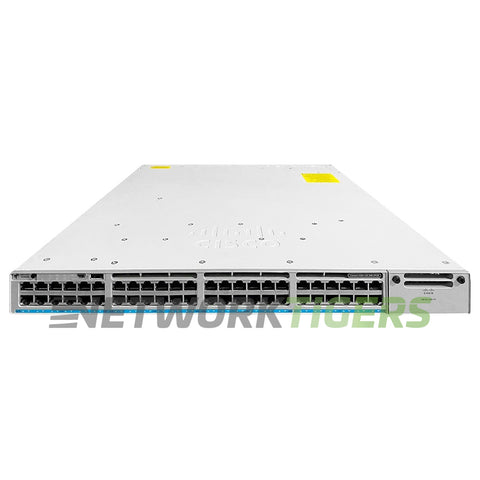

NEW Cisco C9300-48UB-E Catalyst 9300 48x 1GB UPoE RJ45 1x Module Slot Switch
New

NEW Cisco C9300-48UB-E Catalyst 9300 48x 1GB UPoE RJ45 1x Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1232
UPC: 889728214391

Overview

The NEW Cisco C9300-48UB-E Catalyst 9300 is a high-performance switch designed for enterprise networks. It's 48x 1GB UPoE RJ45 ports, and module slots provide flexible connectivity options. The switch supports various power supply units (PSUs) with different PoE budgets ranging from 822W to 1800W.

Featuring a switching capacity of up to 256 Gbps (736 Gbps with stacking), the C9300-48UB-E can handle demanding network environments. It offers an impressive forwarding rate of up to 190.48 Mpps (547.62 Mpps with stacking).

Equipped with a large MAC Address Table Size of 32,000 entries, it efficiently handles traffic routing within your network.

This Cisco switch delivers reliable performance and scalability while supporting advanced features such as Virtual LANs(VLANs), quality-of-service(QoS) prioritization, and enhanced security protocols.

NEW Cisco C9300-48UB-E Catalyst 9300 48x 1GB UPoE RJ45 1x Module Slot Switch


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet UPoE+ RJ45
  • Product Family : Catalyst 9300 Series
  • Management Ports : 1x RJ45, 1x USB 2.0, 1x Mini USB
  • Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
  • Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
  • Module Slots : 1x Expansion Module Slot - None Included - Sold separately
  • Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
  • Switch Version : Network Essentials
  • Fan Module Options : 3x FAN-T2 Field Replaceable Fans Included
  • Power Supplies Included : 1x PWR-C1-1100WAC Included - 2x PSU Slots
  • Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC or PWR-C1-1100WAC - Not Included
  • PoE Budget : 822W (w/ Default PSU), 1172W (w/ 350W 2nd PSU), 1537W (w/ 715W 2nd PSU), 1800W (w/ 1100W 2nd PSU)
  • Switching Capacity : 256 Gbps (736 Gbps with Stacking)
  • Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
  • MAC Address Table Size : 32,000
  • : Included (1-RU)
  • Model Number : C9300-48UB-E
  • Part Number : C9300-48UB-E, C9300-48UB-E=, C9300-48UB-E-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9300-48UB-E Catalyst 9300 48x 1GB UPoE RJ45 1x Module Slot Switch as described above
