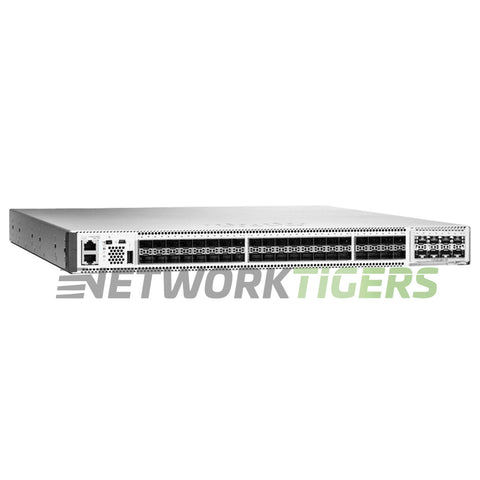

NEW Cisco C9500-48X-A 40x 10GB SFP+ Switch w/ 1x C9500-NM-8X Module
New

NEW Cisco C9500-48X-A 40x 10GB SFP+ Switch w/ 1x C9500-NM-8X Module

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3659

Overview

The NEW Cisco C9500-48X-A switch is equipped with 40x 10GB SFP+ ports and includes a C9500-NM-8X network module, offering additional connectivity options. With a switching capacity of up to 960 Gbps and a forwarding rate of up to 720 Mpps, this switch can effectively handle high data traffic volumes.

The MAC Address Table Size is also substantial at 64,000 entries. The removable network module allows for flexibility in configuration based on specific needs. Compatible modules include the C9500-NM-8X and the C9500-NM-2Q for further expansion possibilities.

This switch provides reliable performance for demanding networking requirements while offering scalability through modular design choices like hot-swappable interface cards.

NEW Cisco C9500-48X-A 40x 10GB SFP+ Switch w/ 1x C9500-NM-8X Module


Specifications

  • Network Ports : 40x 10 Gigabit Ethernet SFP+
  • Uplink Ports : See "Module Slots and Options"
  • Management Ports : 1x USB, 1x Mini USB, 1x RJ45 Console, 1x Gigabit Management
  • Product Family : Catalyst 9500 Series
  • Module Slots : 1x C9500-NM-8X (8x 10GB SFP+) Network Module Included - Removable
  • Module Options : C9500-NM-8X, C9500-NM-2Q
  • Switch Version : Network Advantage
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 5x FAN-T4-R Fans Modules Included- Front-to-Back Airflow
  • Power Supplies Included : 1x PWR-C4-950WAC-R Power Supply included - 2x Slot - 2nd Power Supply ordered separately
  • Power Supply Options : PWR-C4- 950WAC-R, PWR-C4- 950WDC-R
  • Switching Capacity : Up to 960 Gbps
  • Forwarding Rate : Up to 720 Mpps
  • MAC Address Table Size : 64,000
  • : Included (1-RU)
  • Model Number : C9500-48X-A
  • Part Number : C9500-48X-A, C9500-48X-A=, C9500-48X-A-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9500-48X-A 40x 10GB SFP+ Switch w/ 1x C9500-NM-8X Module as described above
