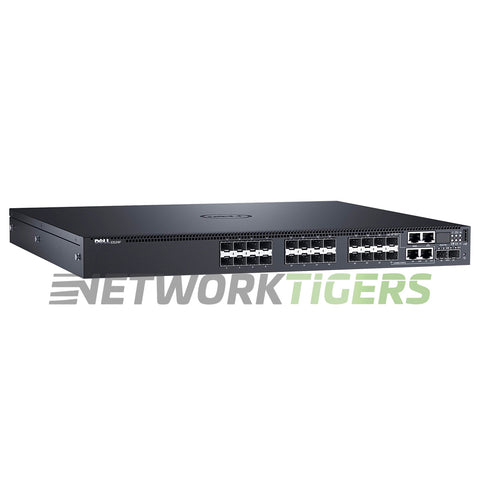

NEW Dell S3124F 24x 1GB SFP 2x 1GB Combo 2x 10GB SFP+ F-B Air 210-AIMA Switch
New

NEW Dell S3124F 24x 1GB SFP 2x 1GB Combo 2x 10GB SFP+ F-B Air 210-AIMA Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2080
UPC: 884116251927

Overview

The NEW Dell S3124F switch, with a switching capacity of 212 Gbps and a forwarding rate of 158 Mpps, is equipped with 24x 1GB SFP ports and 2x combo ports for added flexibility. This switch also includes two high-speed 10GB SFP+ uplink ports for increased network performance.

With a PoE budget included, this switch effectively powers your devices while maximizing connectivity options. Designed to handle demanding environments, the Dell S3124F boasts an impressive MAC Address Table Size of up to 56,000 (80K in L2 scaled mode).

Alternative part numbers include HWMKX and Switching Capacity - offering cost-effective solutions without compromising quality or performance.

NEW Dell S3124F 24x 1GB SFP 2x 1GB Combo 2x 10GB SFP+ F-B Air 210-AIMA Switch


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet SFP
  • Uplink Ports : 2x 1 Gigabit Ethernet Combo (SFP/RJ45), 2x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x USB
  • Stacking Ports : 2x Built in Stacking Ports (Rear of Switch)
  • Module Slots and Options : 1x Hot swappable expansion module slot - supporting dual-port SFP+ or dual-port 10GBaseT (Module not included)
  • Firmware Version : OS9
  • Fan Modules AirFlow Direction : Redundant Variable Speed Fans - Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow)
  • Power Supplies Included : 2x PSU Slots - 1x 200W AC PSU Included - Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow)
  • Alternative Dell Part Numbers : HWMKX, 210-AIMA
  • Switching Capacity : 212 Gbps
  • Forwarding Rate : 158 Mpps
  • MAC Address Table Size : 56,000 (80K in L2 scaled mode)
  • Rack Mounts : Not Included - 770-BBGY Rail Kit can be ordered separately.
  • Model Number : S3124F
  • Part Number : S3124F, 210-AIMA, HWMKX
  • Condition : New


Included

  • One (1) NEW Dell S3124F 24x 1GB SFP 2x 1GB Combo 2x 10GB SFP+ F-B Air 210-AIMA Switch as described above
