NEW Dell S4048T-ON-RA 210-AHMV 48x 10GB Copper 6x 40GB QSFP+ B-F Air OS10 Switch
New

NEW Dell S4048T-ON-RA 210-AHMV 48x 10GB Copper 6x 40GB QSFP+ B-F Air OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0178
UPC: 011110530110

Overview

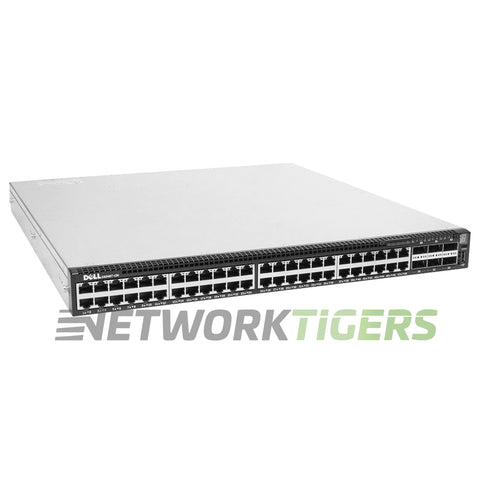

The Dell S4048T-ON-RA 210-AHMV switch offers high-speed networking capabilities with its 48x 10GB copper and six 40GB QSFP+ ports.

With a switching capacity of up to 1.44 Tbps, this switch can handle heavy network traffic efficiently. The MAC address table size of 160,000 ensures seamless communication between devices on the network. Additionally, the low latency rate of just 2.8 us minimizes delays in data transmission.

Designed for demanding environments, the Dell S4048T-ON-RA switch is equipped with Air OS10 software for optimal performance and reliability. It has a forwarding rate of up to 1080 Mpps which allows for fast packet processing across multiple connections simultaneously.

Dell S4048T-ON: 48x 10GBASE-T, 6x QSFP+, 2x AC PSU, 2x fans, Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed Airflow). OS10 is included.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet RJ45
  • Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
  • Switch Version : OS10 is included
  • AirFlow Direction : Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed Airflow)
  • Fan Module Options : 4x Fan Module Included
  • Power Supplies Included : 1x AC Power Supply Included
  • Switching Capacity : 1.44 Tbps
  • Forwarding Rate : 1080 Mpps
  • MAC Address Table Size : 160,000
  • Latency : 2.8 us
  • Alternative Dell Part Numbers : 210-AHMV
  • : Not Included - 770-BBGY Rail Kit can be ordered separately.
  • Model Number : S4048T-ON-RA
  • Part Number : S4048T-ON-RA, 210-AHMV, S4048T-ON RA
  • Condition : New


Included

  • One (1) NEW Dell S4048T-ON-RA 210-AHMV 48x 10GB Copper 6x 40GB QSFP+ B-F Air OS10 Switch as described above
