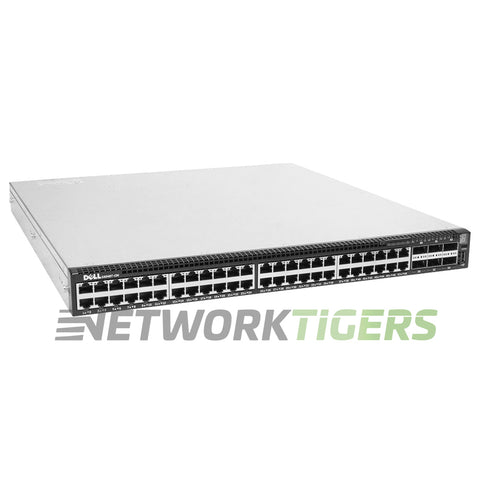

NEW Dell S4048T-ON-RA 210-AHMV 48x 10GB Copper 6x 40GB QSFP+ B-F No OS10 Switch
New

NEW Dell S4048T-ON-RA 210-AHMV 48x 10GB Copper 6x 40GB QSFP+ B-F No OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9961
UPC: 011110530110

Overview

The Dell S4048T-ON-RA 210-AHMV switch delivers 48x 10GbE copper ports and six QSFP+ uplinks with a switching capacity of up to 1.44 Tbps.

Its forwarding rate reaches up to 1080 Mpps, while the MAC address table supports storage for up to 160,000 entries. The device's low latency averages at just 2.8 microseconds under typical conditions, enhancing packet transmission efficiency in high-speed networks.

This model offers robust performance across data-intensive operations requiring consistent throughput at scale. It fits into setups involving advanced Layer 2/Layer 3 routing protocols without added complexity or loss of feature flexibility.

Dell S4048T-ON: 48x 10GBASE-T, 6x QSFP+, 2x AC PSU, 2x fans, Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed Airflow). OS10 is NOT included.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet RJ45
  • Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
  • Switch Version : OS10 is NOT included
  • AirFlow Direction : Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed Airflow)
  • Fan Module Options : 4x 99D5T Fan Module Included
  • Power Supplies Included : 1x DPS-460KB AC Power Supply Included
  • Switching Capacity : 1.44 Tbps
  • Forwarding Rate : 1080 Mpps
  • MAC Address Table Size : 160,000
  • Latency : 2.8 us
  • Alternative Dell Part Numbers : 210-AHMV
  • : Not Included - 770-BBGY Rail Kit can be ordered separately.
  • Model Number : S4048T-ON-RA
  • Part Number : S4048T-ON-RA, 210-AHMV, S4048T-ON RA
  • Condition : New


Included

  • One (1) NEW Dell S4048T-ON-RA 210-AHMV 48x 10GB Copper 6x 40GB QSFP+ B-F No OS10 Switch as described above
