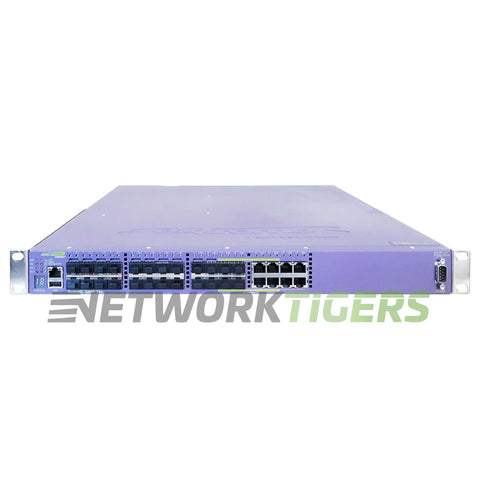

NEW Extreme 16405 X460-24x 24x 1GB SFP 4x 1GB Combo 2x Module Slot Switch
New

NEW Extreme 16405 X460-24x 24x 1GB SFP 4x 1GB Combo 2x Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5045
UPC: 644728164059

Overview

The NEW Extreme 16405 X460-24x Switch features a switching capacity of 176 Gbps and a forwarding rate of 130.9 Mpps, making it ideal for high-performance networking tasks. With 24x SFP ports, four combo ports, and two module slots, this switch offers extensive connectivity options.

The MAC address table size is large at 32,000 entries to support efficient network operation. Designed with reliability in mind, the Extreme X460-24x is suitable for demanding environments where data transfer speed is critical. Its robust design ensures seamless operation even under heavy load conditions. This switch provides businesses with the performance they need to maintain smooth operations without compromising on quality or efficiency.

NEW Extreme 16405 X460-24x 24x 1GB SFP 4x 1GB Combo 2x Module Slot Switch


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet SFP
  • Uplink Ports : 4x 1 Gigabit Ethernet Combo (SFP/RJ-45)
  • Management Ports : 1x DB-9 Serial, 1x Fast Ethernet RJ45, 1x USB
  • Stacking Ports : 1x Stacking Module Slot - Not Included
  • Stacking Options : Options for Slot B are 16419 (SummitStack 40 Gbps), 16420 (SummitStack-V80 80Gbps high-speed stacking or SummitStack-V longer distance stacking)
  • Module Slots : 1x Expansion Module Slot - Expansion Modules not included
  • Module Options : Options for Slot A are - 16117 (XGM3-2SF 10 Gigabit SFP+), 16119 (XGM3S-2xf/module 2 x 10GbE XFP), 16126 (XGM3S-2sf/module 2 x 10GbE SFP+)
  • Switch Version : ExtremeXOS Edge Licence
  • Fan Module Options : 1x 10935 Summit X460 Fan Module Included.
  • Power Supplies Included : 1x 10930 Summit 300W AC Power Supply Included - 2x Slots - 2nd PSU not included
  • Switching Capacity : 176 Gbps
  • Forwarding Rate : 130.9 Mpps
  • MAC Address Table Size : 32,000
  • CPU : 64-bit MIPS Processor, 600 MHz clock
  • DRAM and Flash : 1GB ECC DRAM, 1GB Compact Flash
  • : Included (1-RU)
  • Model Number : 16405
  • Part Number : 16405, X460-24x
  • Condition : New


Included

  • One (1) NEW Extreme 16405 X460-24x 24x 1GB SFP 4x 1GB Combo 2x Module Slot Switch as described above
