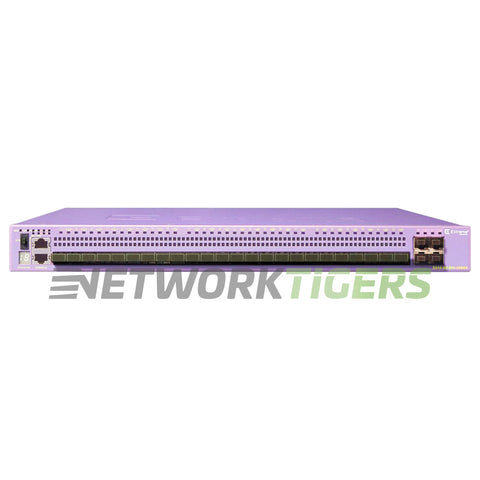

NEW Extreme 16538 X440-G2-24x-10GE4 24x 1G SFP 4x 1G Combo 4x 10G SFP+ Switch
New

NEW Extreme 16538 X440-G2-24x-10GE4 24x 1G SFP 4x 1G Combo 4x 10G SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

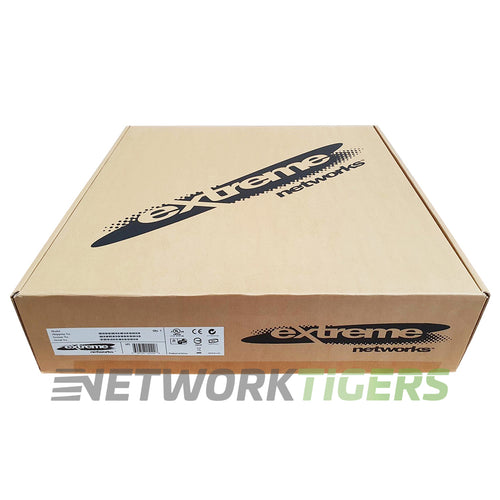

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-4212
UPC: 644728165384

Overview

The NEW Extreme 16538 X440-G2-24x-10GE4 Switch offers a high switching capacity of 128 Gbps and a forwarding rate of 95 Mpps. With its MAC Address Table Size of up to 16,000 entries, this switch provides reliable connectivity for networks with multiple devices.

It features 24x1G SFP ports, along with four combo ports that support both Gigabit Ethernet and Fast Ethernet connections. Additionally, the switch includes four 10G SFP+ uplink ports for high-speed data transmission. Ideal for medium to large-scale networking environments requiring fast and efficient data transfer speeds, the Extreme X440-G2-24X-Switch delivers stable performance without compromising on reliability or speed.

With its robust construction and advanced features such as Layer3 routing capabilities available via software upgrade options (sold separately), this switch is designed to meet the demands of modern network operations seamlessly.

NEW Extreme 16538 X440-G2-24x-10GE4 24x 1G SFP 4x 1G Combo 4x 10G SFP+ Switch


Specifications

  • Network Ports : 24x Gigabit Ethernet SFP (unpopulated)
  • Uplink Ports : 4x 1G SFP Combo (SFP/RJ45), 4x 1 Gigabit Ethernet Unpopulated SFP (upgradeable to 10G SFP+)
  • Management Ports : 1x Serial RJ45 Console, 1x Gigabit Out of Band Management, 1x USB 2.0,
  • Stacking Ports : 2x SummitStack-V connectors - SummitStack-V uses two of the four available uplink ports on the X440-G2 and runs a 10Gb non-Ethernet stacking protocol. These stacking ports DO NOT require a 10GbE software license
  • Stacking Options : SummitStack-V with support for up to eight switches per stack - X440-G2 switches can be stacked with other X450-G2, X460-G2, X670-G2 and X770 switches via SummitStack-V so long as all are running the same version of ExtremeXOS.
  • Stacking Cable Options : SummitStack-V allows use of standard 10Gb Ethernet cabling and optics technologies, providing longdistance stacking connectivity of up to 40 Km while eliminating the cable complexity of non-standard stacking options
  • Secondary Module Number/ Name : X440-G2-24x-10GE4
  • Switch Version : ExtremeXOS Edge
  • Packet Buffer : 3.0MB
  • Fan Module Options : Fixed
  • Power Supplies Included : 1x Internal AC Power Supply - 1x RPS Slot
  • CPU : 64-bit MIPS Processor, 1 GHz clock, single core
  • Switching Capacity : 128 Gbps
  • Forwarding Rate : 95 Mpps
  • MAC Address Table Size : 16,000
  • DRAM and Flash : 1GB ECC DDR3 DRAM, 4GB eMMC Flash
  • : Included (1-RU)
  • Model Number : 16538
  • Part Number : 16538, X440-G2-24x-10GE4
  • Condition : New


Included

  • One (1) NEW Extreme 16538 X440-G2-24x-10GE4 24x 1G SFP 4x 1G Combo 4x 10G SFP+ Switch as described above
