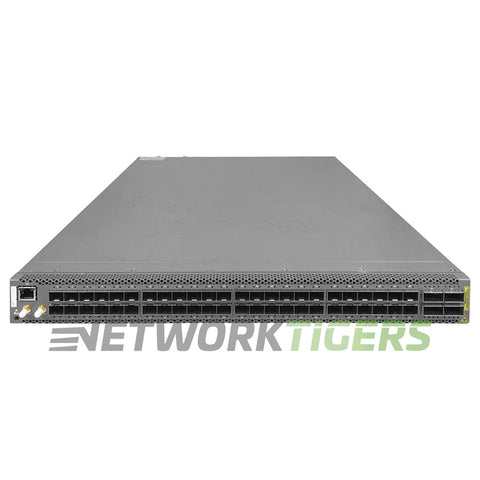

NEW Juniper QFX5110-48S-DC-AFO 48x 10GB SFP+ 4x 100GB QSFP28 F-B Air (DC) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

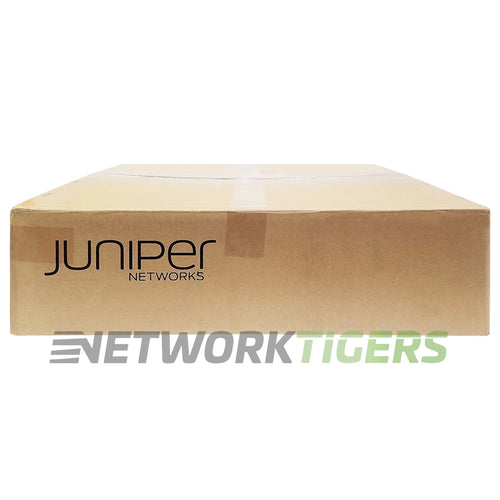

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3623

Overview

The Juniper QFX5110-48S-DC-AFO switch is designed for data centers and features 48x 10GB SFP+ ports, along with 4x 100GB QSFP28 F-B Air (DC) ports. With a switching capacity of 1.76 Tbps and a forwarding rate of up to 1.32 Bpps, it offers high performance for demanding network environments.

This switch has a MAC address table size of up to 288,000 entries and boasts low latency at just under 550 ns. It provides reliable connectivity and efficient packet processing capabilities for your network setup.

Overall, the Juniper QFX5110-48S-DC-AFO is an excellent choice for organizations looking for a solution that can handle high bandwidth requirements while maintaining low latency in their data center environment.

Juniper QFX5110-48S-DC-AFO: QFX5110, 48 SFP+ and 4 QSFP28, front to-back DC.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x USB, 1x RS-232 Console RJ45, 2x Management (2x SFP Fiber or 1x RJ45 and 1x Copper SFP)
  • Firmware Version : Junos OS
  • Fan Modules AirFlow Direction : 5x QFX5110-FANAFO Fan Modules included - Front to Back Airflow
  • Power Supplies Included : 2x JPSU-650W-AC-AFO AC Power Supplies Included - Front to Back Airflow
  • Switching Capacity : 1.76 Tbps
  • Forwarding Rate : 1.32 Bpps
  • MAC Address Table Size : 288,000
  • Latency : 550 ns
  • Rack Mounts : Included (1-RU)
  • Model Number : QFX5110-48S-DC-AFO
  • Part Number : QFX5110-48S-DC-AFO
  • Condition : New


Included

  • One (1) NEW Juniper QFX5110-48S-DC-AFO 48x 10GB SFP+ 4x 100GB QSFP28 F-B Air (DC) Switch as described above
