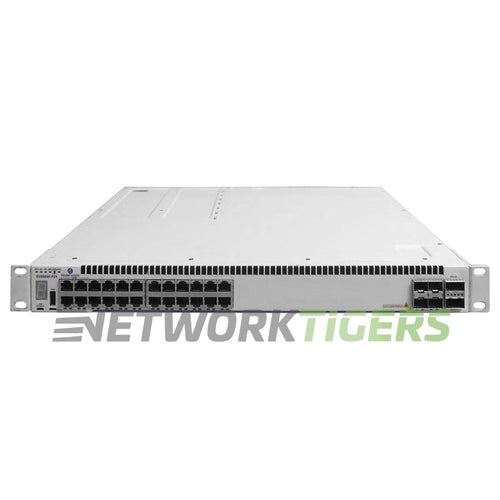

Alcatel-Lucent OS6860E-P24-US 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-4555

Overview

The Alcatel-Lucent OS6860E-P24-US switch offers 24 ports of PoE+ RJ-45 connectivity along with 4 additional 10GB SFP+ uplink ports. With a switching capacity of 224 Gbps and a forwarding rate of 154.9 Mpps, this switch can handle high volumes of network traffic efficiently.

Equipped with a MAC address table size of up to 48,000 entries, the OS6860E-P24-US allows for seamless communication between devices on the network. Ideal for businesses looking to expand their Ethernet capabilities while maintaining reliable performance levels in fast-paced environments.

With its robust design and feature-packed functionality, this Alcatel-Lucent switch is well-suited for organizations seeking dependable networking solutions that prioritize speed and efficiency without compromising quality or reliability in data transmission across multiple connected devices within an enterprise setting.

Alcatel-Lucent OS6860E-P24-US 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45 (20 PoE+ 802.3at, 4 x 60W PoE 802.3bt)
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x USB, 1x Console Port
  • Stacking Ports : 2x VFL Stacking Ports
  • Stacking Options : Maximum number of units in a virtual chassis is 8.
  • Stacking Cable Options : OS6860-CBL-40, OS6860-CBL-10, OS6860-CBL-300
  • Power Supplies Included : 1x OS6860-BP-PH 600W PSU Included - 2x Slots - 2nd PSU is not included
  • Power Supply Options : OS6860-BP-PH is the only option
  • PoE Budget : 450W (w/ 1x PSU), 900W (w/ 2x PSU)
  • Switching Capacity : 224 Gbps
  • Forwarding Rate : 154.9 Mpps
  • MAC Address Table Size : 48,000
  • DRAM and Flash : 2 GB DRAM, 2 GB Flash,
  • Model Number : OS6860E-P24-US
  • Part Number : OS6860E-P24-US
  • Condition : Seller refurbished


Included

  • One (1) Seller refurbished Alcatel-Lucent OS6860E-P24-US 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
