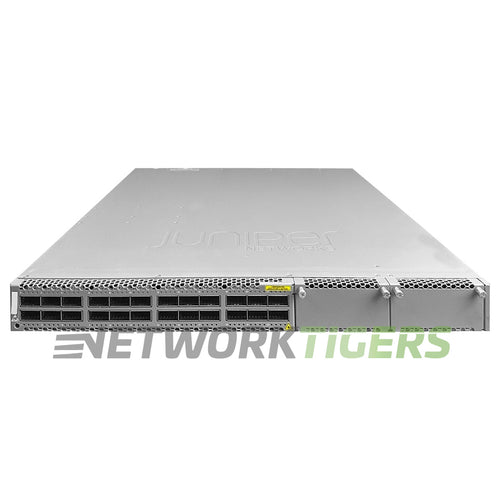

Juniper QFX5100-24Q-D-3AFI 24x 40GB QSFP+ 2x Mod Slots B-F Air (DC) Switch

Juniper QFX5100-24Q-D-3AFI 24x 40GB QSFP+ 2x Mod Slots B-F Air (DC) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8234

Overview

The Juniper QFX5100-24Q-D-3AFI switch features 24x 40GB QSFP+ ports, offering a switching capacity of 2.56 Tbps and a forwarding rate of 1.44 Bpps. With a MAC address table size of up to 288,000 entries and low latency at just 550 ns, this switch is designed for high-performance data center environments.

Equipped with two modular slots for additional flexibility and scalability options in network configurations, the Juniper QFX5100-24Q-D-3AFI ensures reliable connectivity with optimized throughput levels. Designed specifically to meet the demands of modern networking requirements without compromising performance.

Juniper QFX5100-24Q-D-3AFI: QFX5100, 24 QSFP+ ports, two expansion slots, dual SFP/RJ45 management ports, redundant fans, redundant DC power supplies, back-to-front airflow.


Specifications

  • Network Ports : 24x 40 Gigabit Ethernet QSFP+
  • Uplink Ports : 2x Gigabit Combo (SFP/RJ-45)
  • Management Ports : 1x RJ45 Serial Console, 1x RJ45 Gigabit Management, 1x Gigabit SFP Management, 1x USB
  • Module Slots and Options : 2x Expansions Slots - 4 Port Modules not included (QFX-PFA-4Q, QFX-EM-4Q)
  • Fan Modules AirFlow Direction : 5x QFX5100-FAN-AFI Fan Modules Included - Back-to-Front Airflow (blue handles)
  • Power Supplies Included : 2x JPSU-650W-DC-AFI DC Power Supplies Included - Back-to-Front Airflow (blue handles)
  • Switching Capacity : 2.56 Tbps
  • Forwarding Rate : 1.44 Bpps
  • MAC Address Table Size : 288,000
  • Latency : 550 ns
  • Rack Mounts : Included (1-RU)
  • Model Number : QFX5100-24Q-D-3AFI
  • Part Number : QFX5100-24Q-D-3AFI
  • Condition : Seller refurbished

Datasheet

More information on this Juniper QFX5100-24Q-D-3AFI.

Included

  • One (1) Seller Refurbished Juniper QFX5100-24Q-D-3AFI 24x 40GB QSFP+ 2x Mod Slots B-F Air (DC) Switch as described above
  • One (1) Power Cord Included
  • Two (2) DC Power Supplies Included
  • Five (5) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
