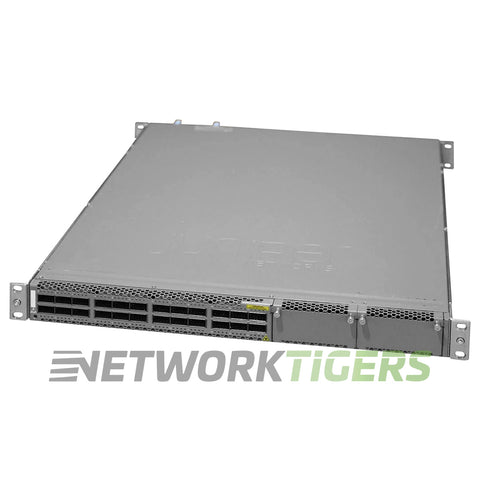

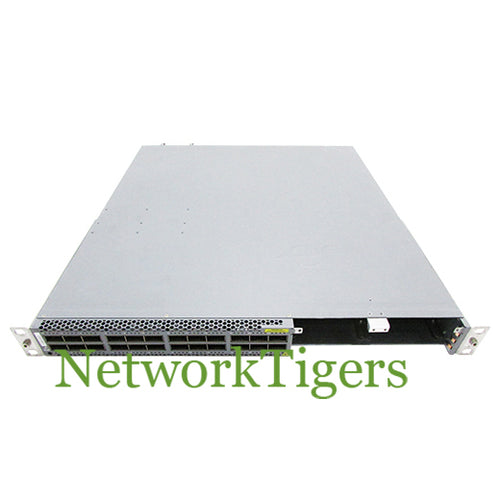

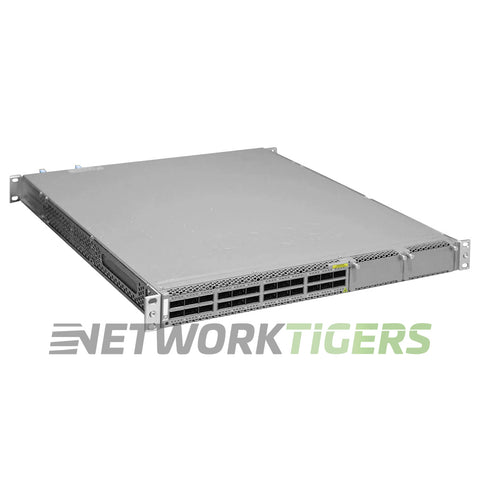

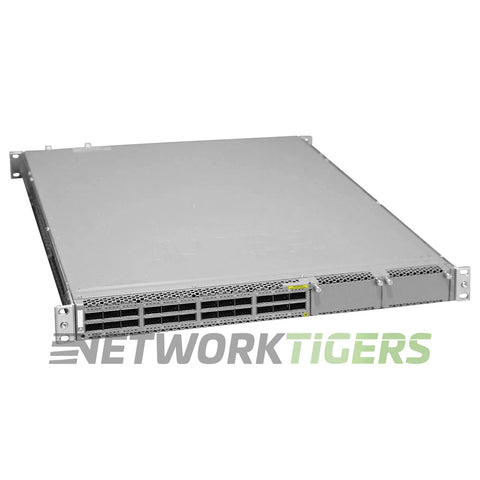

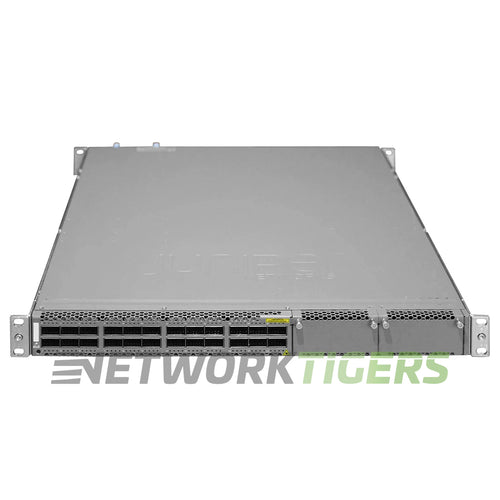

Juniper QFX5100-24Q-DC-AFI 24x 40GB QSFP+ 2x Mod Slots B-F Airflow (DC) Switch

Juniper QFX5100-24Q-DC-AFI 24x 40GB QSFP+ 2x Mod Slots B-F Airflow (DC) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8214

Overview

The Juniper QFX5100-24Q-DC-AFI is a high-performance data center switch designed to meet the demands of modern network environments. With 24 ports of 40GB QSFP+ and two modular slots for expansion, this switch offers a switching capacity of 2.56 Tbps and a forwarding rate of up to 1.44 Bpps.

The MAC Address Table Size supports up to 288,000 entries, ensuring efficient packet routing in large-scale networks. The DC power supply option makes it suitable for deployments where AC power may be limited or unavailable.

Juniper QFX5100-24Q-DC-AFI: QFX5100, 24 QSFP ports, two expansion slots, redundant fans, redundant DC power supplies, back-to-front airflow.


Specifications

  • Network Ports : 24x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ45 Serial Console, 1x RJ45 Gigabit Management, 1x Gigabit SFP Management, 1x USB
  • Module Slots and Options : 2x Slots - None Included - Options are - QFX-PFA-4Q, QFX-EM-4Q, EX4600-EM-8F.
  • Firmware Version : JUNOS
  • Fan Modules AirFlow Direction : 5x QFX5100-FAN-AFI Fan Modules Included - Back-to-Front Airflow - Blue handles
  • Power Supplies Included : 2x JPSU-650W-DC-AFI DC Power Supplies Included - Back-to-Front Airflow - Blue handles
  • Switching Capacity : 2.56 Tbps
  • Forwarding Rate : 1.44 Bpps
  • MAC Address Table Size : 288,000
  • Rack Mounts : Included (1-RU)
  • Model Number : QFX5100-24Q-DC-AFI
  • Part Number : QFX5100-24Q-DC-AFI
  • Condition : Seller refurbished

Datasheet

More information on this Juniper QFX5100-24Q-DC-AFI.

Included

  • One (1) Seller Refurbished Juniper QFX5100-24Q-DC-AFI 24x 40GB QSFP+ 2x Mod Slots B-F Airflow (DC) Switch as described above
  • Two (2) Power Cords Included
  • Two (2) DC Power Supplies Included
  • Five (5) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
