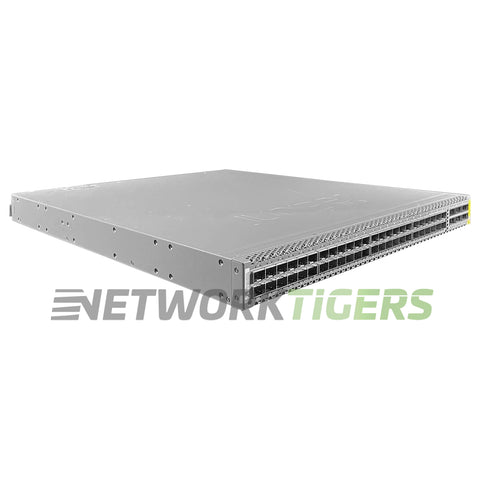

The Juniper QFX5100-48S-3AFO switch is a high-performance networking solution that offers 48x 10GB SFP+ ports and 6x 40GB QSFP+ ports. With its powerful switching capacity of up to 1.44 Tbps, this switch ensures smooth data flow even in demanding network environments.
Designed for efficient forwarding, the QFX5100-48S-3AFO boasts an impressive forwarding rate of up to 1.08 Bpps (billion packets per second). This enables seamless connectivity and fast data transfers within your network infrastructure.
With a MAC address table size of up to 288,000 entries, this switch can easily accommodate large-scale networks. It supports front-to-back airflow configuration, allowing flexible deployment options based on your needs.
Juniper QFX5100-48S-3AFO: QFX5100, 48x SFP+/SFP ports, 6x QSFP+ ports, dual SFP/RJ45 management ports, redundant fans, 2 AC power supplies, front-to-back airflow.
- Network Ports : 48x 10 Gigabit Ethernet SFP+,
- Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ45 Serial Console, 2x SFP/RJ45 Dual Management, 1x USB
- Additional Uplink Port Information : For added flexibility, the 40GbE ports on all QFX5100 switches can be used as 4x10GbE ports using QSFP+ to SFP+ direct attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics (up to 72 10GbE ports).
- Switch Version : Junos
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 5x QFX5100-FAN-AFO Fan Modules Included
- Power Supplies Included : 2x JPSU-650W-AC-AFO AC Power Supplies Included
- Power Supply Options : JPSU-650W-AC-AFI is the B-F option, JPSU-650W-DC-AFO, JPSU-650W-DC-AFI are the DC options.
- Switching Capacity : 1.44 Tbps
- Forwarding Rate : 1.08 Bpps
- MAC Address Table Size : 288,000
- SSD : 32GB SSD Storage
- CPU : 1.5 GHz dual-core Intel CPU
- Model Number : QFX5100-48S-3AFO
- Part Number : QFX5100-48S-3AFO
- Condition : New
- One (1) NEW Juniper QFX5100-48S-3AFO 48x 10GB SFP+ 6x 40GB QSFP+ F-B Airflow Switch as described above
