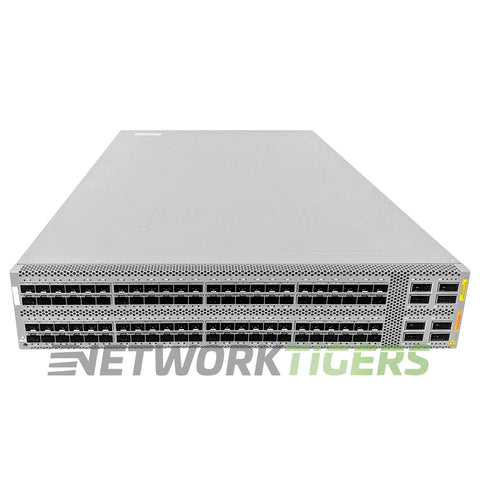

The Juniper QFX5100-96S-AFO is a high-performance switch designed for data centers and enterprise networks. With 96x 10GB SFP+ ports and 8x 40GB QSFP+ ports, this front-to-back air switch offers versatile connectivity options.
This QFX5100 has a switching capacity of up to 2.56 Tbps, ensuring smooth traffic flow even in demanding environments. It also boasts a forwarding rate of up to 1.44 Bpps, enabling fast packet processing.
The QFX5100-96S-AFO has a MAC address table size that can accommodate approximately 288,000 entries. This allows the switch to manage large-scale installations.
Juniper QFX5100-96S-AFO: QFX5100, 96 SFP/SFP+, 8 QSFP+, redundant fans, redundant AC power supplies, front-to-back airflow.
- Network Ports : 96x 10 Gigabit Ethernet SFP+
- Uplink Ports : 8x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ45 Serial Console, 1x RJ45 Gigabit Management, 1x Gigabit SFP Management, 1x USB
- VLAN IDs : 4,096
- Switch Version : Junos
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x QFX5100-96S-FANAFO Fan Modules Included - Front-to-Back Airflow
- Power Supplies Included : 2x JPSU-850W-AC-AFO Power Supplies Included - Front-to-Back Airflow
- Power Supply Options : JPSU-850W-AC-AFI is the B-F Airflow option - JPSU-650W-AC, JPSU-650W-DC, JPSU-850W-DC also available as PSU options.
- IPv4 unicast routes : 128,000 Prefixes - 208,000 host routes - 644 ECMP paths
- Switching Capacity : 2.56 Tbps
- Forwarding Rate : 1.44 Bpps
- MAC Address Table Size : 288,000
- IPv4 Multicast Routes : 104,000
- IPv6 Multicast Routes : 52,000
- Model Number : QFX5100-96S-AFO
- Part Number : QFX5100-96S-AFO, QFX5100-96S
- Condition : New
- One (1) NEW Juniper QFX5100-96S-AFO 96x 10GB SFP+ 8x 40GB QSFP+ Front-to-Back Air Switch as described above
