The Juniper QFX5200-32C-AFO is a high-performance switch for data centers and large-scale networks with 32x QSFP28 ports and front-to-back airflow to maximize cooling efficiency.
This switch comes with 16 GB SDRAM and a generous storage capacity of 64 GB SSD, providing ample memory resources for efficient network operation.
The QFX5200-32C-AFO boasts impressive performance. A switching capacity of up to 6.4 Tbps and forward rate reaching up to 4.8 Bpps (billion packets per second). Its MAC Address Table can accommodate up to 150k entries while supporting 4096 VLAN IDs.

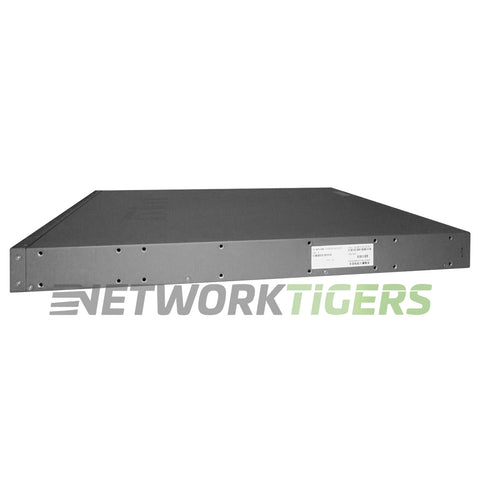

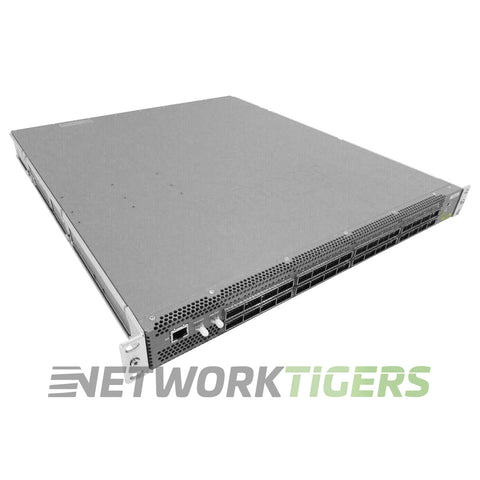

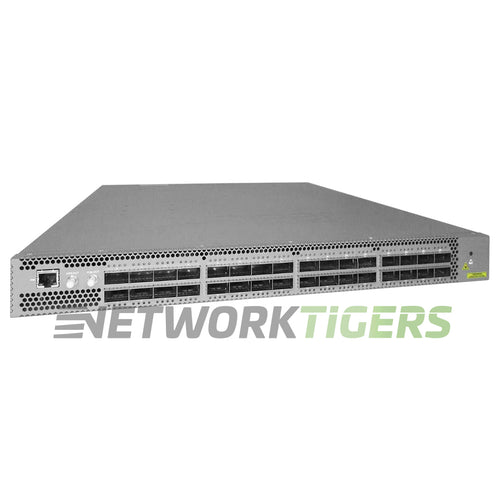

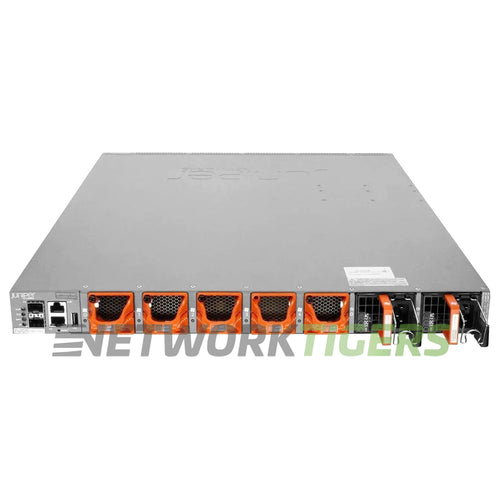

Juniper QFX5200-32C-AFO 32x 100GB QSFP28 Front-to-Back Airflow Switch
- Network Ports : 32x 100 Gigabit Ethernet QSFP28 | 32x QSFP+ or QSFP28 - 128x 10GbE SFP+ through QSFP+ to SFP+ breakout cable, 128x 25GbE SFP28 through QSFP28 to SFP28 breakout cable
- Product Family : QFX5200 Series
- Management Ports : 1x 1 Gigabit RJ45 Management (PTP Grandmaster), 1x USB, 1x RS-232 RJ45, 2x SFP and 1x RJ45 Gigabit RJ45 Management (only two ports can be used)
- Switch Version : Junos OS
- System Memory : 16 GB SDRAM, 64 GB SSD
- AirFlow Direction : Front-to-Back Airflow
- Fan Modules : 5x QFX5200-32C-FANAFO Fan Modules Included - Front-to-Back Airflow
- Power Supplies : 2x JPSU-850W-AC-AFO Power Supplies Included - JPSU-850W-AC-AFI (B-F Airflow Option)
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 4.8 Bpps
- MAC Address Table Size : 136,000
- IPv4 Unicast Routes : 128,000 prefixes; 104,000 host routes
- Multicast Routes : 52,000 (IPv4), 28,000 (IPv6)
- VLANs Supported : 4096
- Packet Buffer : 16 MB
- CPU : Intel Quad Core Ivy Bridge 1.8 GHz CPU
- Model Number : QFX5200-32C-AFO
- Part Number : QFX5200-32C-AFO
- Condition : Seller refurbished
- One (1) Seller Refurbished Juniper QFX5200-32C-AFO 32x 100GB QSFP28 Front-to-Back Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Five (5) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
