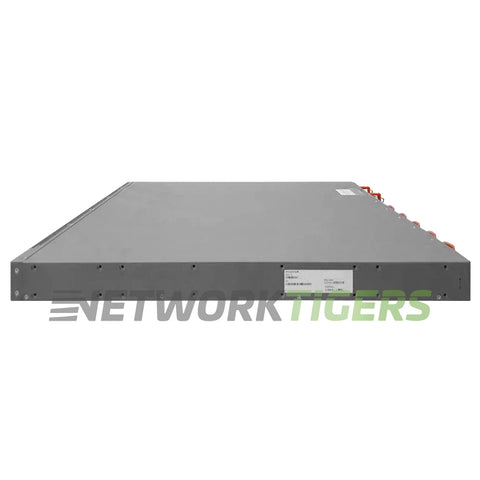

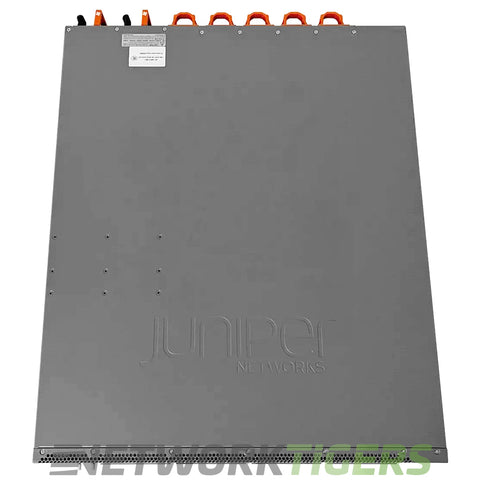

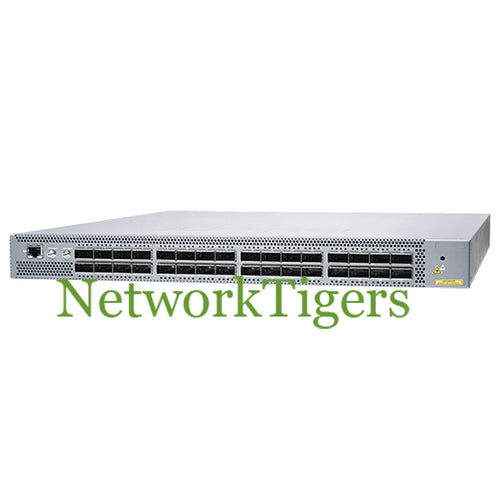

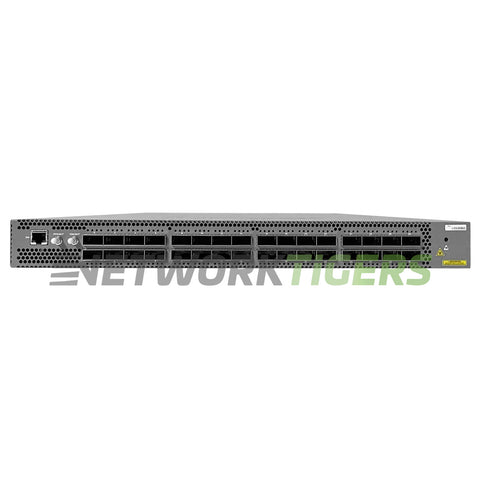

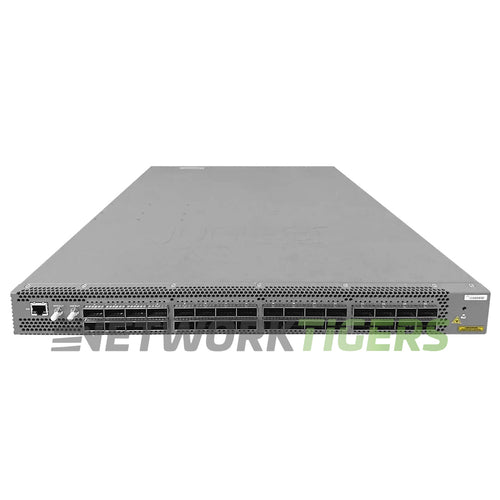

Juniper QFX5200-32C-DC-AFO 32x 100G QSFP28 Front-to-Back Airflow (DC) Switch

Juniper QFX5200-32C-DC-AFO 32x 100G QSFP28 Front-to-Back Airflow (DC) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-8255

Overview

Juniper QFX5200-32C-DC-AFO is a high-performance switch designed for data centers with demanding networking requirements. It features 32 ports supporting QSFP28 transceivers, allowing for reliable and efficient connectivity at up to 100 Gbps per port.

With its front-to-back airflow design and DC power input, it is ideal for deployment in data center environments. This switch has a capacity of 6.4 Terabits per second (Tbps) and a forwarding rate of 4.8 billion packets per second (Bpps), ensuring optimal performance even under heavy network loads.

The MAC address table size reaches up to 136,000 entries while supporting 4096 VLAN IDs, ensuring flexible virtualization options.

Juniper QFX5200-32C-DC-AFO 32x 100G QSFP28 Front-to-Back Airflow (DC) Switch


Specifications

  • Network Ports : 32x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x Gigabit RJ45 Management (PTP Grandmaster), 1x USB, 1x RS-232 RJ45, 2x SFP and 1x RJ45 Gigabit RJ45 Management (only two ports can be used)
  • Switch Version : Junos OS
  • System Memory : 16 GB SDRAM
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Modules : 5x QFX5200-32C-FANAFO Fan Module - Front-to-Back Airflow
  • Power Supplies : 2x JPSU-850W-DC-AFO Power Supplies
  • Switching Capacity : 6.4 Tbps
  • Forwarding Rate : 4.8 Bpps
  • MAC Address Table Size : 136,000
  • IPv4 Unicast Routes : 128,000 prefixes; 104,000 host routes
  • IPv6 Unicast Routes : 98,000 prefixes; 52,000 host routes
  • IPv4 Multicast Routes : 52,000
  • VLANs Supported : 4096
  • Packet Buffer : 16 MB
  • CPU : 16 GB SDRAM
  • Model Number : QFX5200-32C-DC-AFO
  • Part Number : QFX5200-32C-DC-AFO
  • Condition : Seller refurbished

Datasheet

More information on this Juniper QFX5200-32C-DC-AFO.

Included

  • One (1) Seller Refurbished Juniper QFX5200-32C-DC-AFO 32x 100G QSFP28 Front-to-Back Airflow (DC) Switch as described above
  • Two (2) DC Power Supplies Included
  • Five (5) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
